Leviton M1223-E

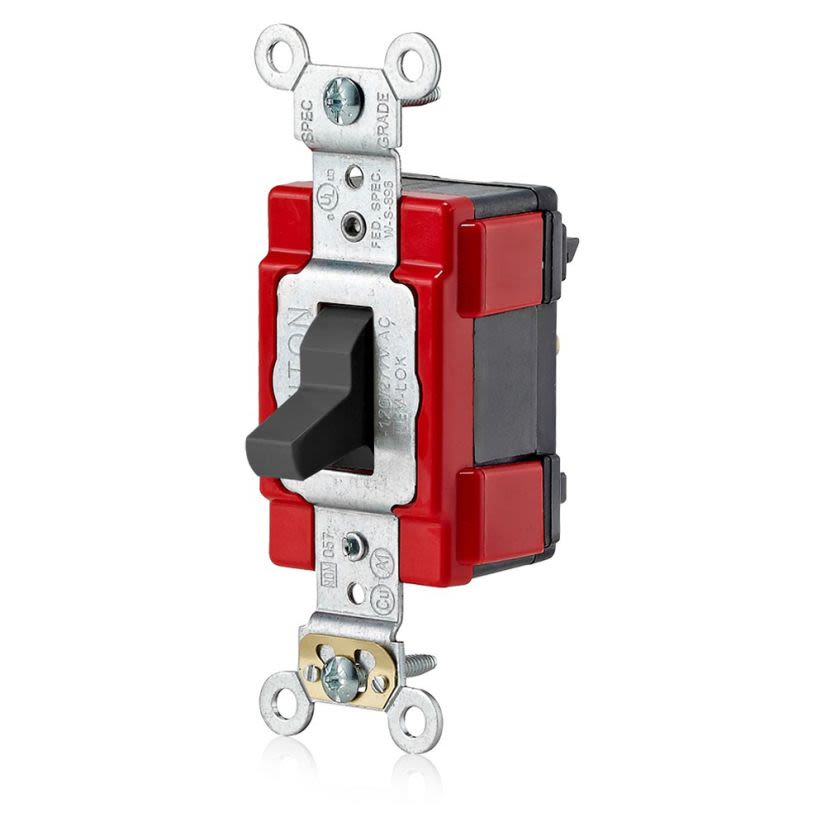

Leviton Lev-Lok M1223-E 3-Way Large Standard Toggle Switch, 120/277 V AC, 20 A, 1 hp
Leviton M1223-E
Leviton Lev-Lok M1223-E 3-Way Large Standard Toggle Switch, 120/277 V AC, 20 A, 1 hpNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #M1223-E
Werner Part #4250045
UPC078477494714
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #M1223-E
Werner Part #4250045
UPC078477494714
Product Description
Leviton Lev-Lok Toggle Switch, 3-Way Large Standard, 120/277 V AC, 20 A, 1 hp, Toggle, Surface, 50000 Operating Cycles, Polybutylene Terephthalate, Black, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.06 in H x 1.5 in W x 1.46 in D
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Actuator TypeToggle
ColorBlack
Country of OriginMX
Dimensions4.06 in H x 1.5 in W x 1.46 in D
Electrical Ratings1 hp
ManufacturerLeviton
MaterialPolybutylene Terephthalate
Mounting TypeSurface
Temperature Rating-40 to 65 deg C Operating Temperature
Type3-Way Large Standard
Type / Style3-Way Large Standard
Voltage Rating120/277 V AC
Documents
Applications
Commercial and Residential Applications
Warranty
10 Years Limited
Features
- Three latches mate with wiring module for added security
- Terminal posts are solid brass for strong, secure connection between switch and wiring module
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cULus File No. E7458|Federal Specification WS896|NEMA WD1/WD6|NOM 057|UL 20|UL94 V-2 Flammability Rating
