Leviton BR20-T

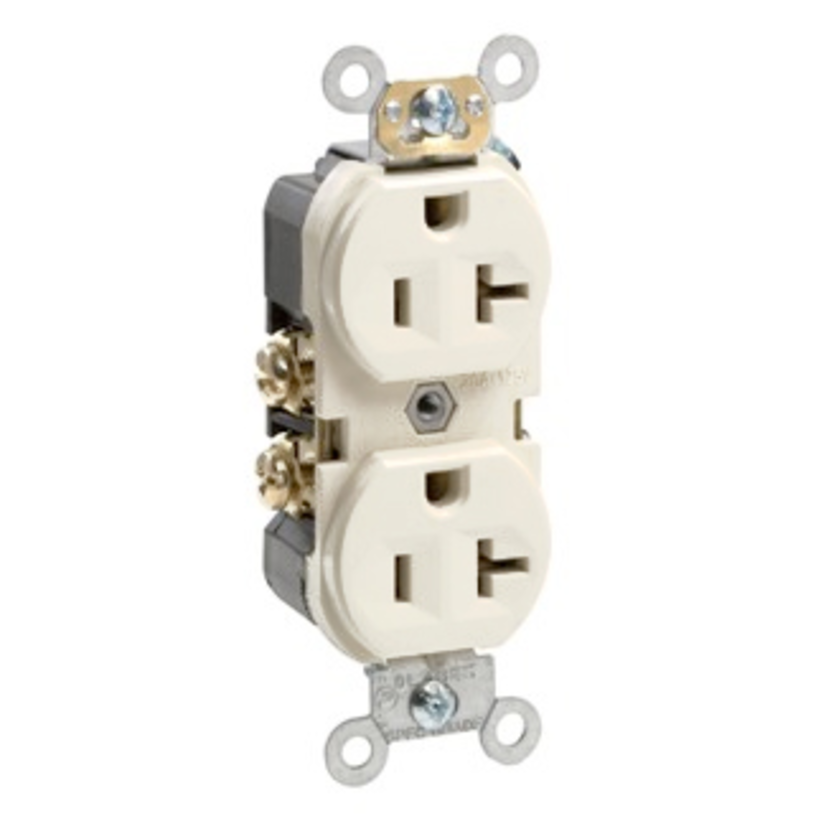

Leviton BR20-T 1-Phase Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Light Almond
Leviton BR20-T
Leviton BR20-T 1-Phase Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Light AlmondInventory Not Available
Inventory Not Available
Product Description
Leviton, BR20-T, Straight Blade Receptacle, 1-Phase Duplex Heavy Duty, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Light Almond, 46 in H x 1.56 in W x 19 in D Dimensions
Attributes
Documents
Applications
Features
Warranty
Attributes
ColorLight Almond
Country of OriginUS
Dimensions46 in H x 1.56 in W x 19 in D
GradeCommercial
Horsepower1 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type1-Phase Duplex Heavy Duty
Voltage Rating125 V AC
Documents
Applications
Hotels, Schools, Hospitals and Commercial Office Buildings Applications
Features
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
- Self-grounding
- 2000 VAC minimum dielectric strength
- Narrow body
- Maximum 30 deg C after 100 cycles OL at 150% rated current temperature rise
- 14 to 10 AWG wire terminal
- Nylon body/face material, brass terminal/grounding screws/ground clips, zinc plated steel strap material/clamp nuts
- Brass-hot, green ground, white-neutral terminal ID
- Full rated current limiting
Warranty
10 years Limited
