Leviton 8300-HW

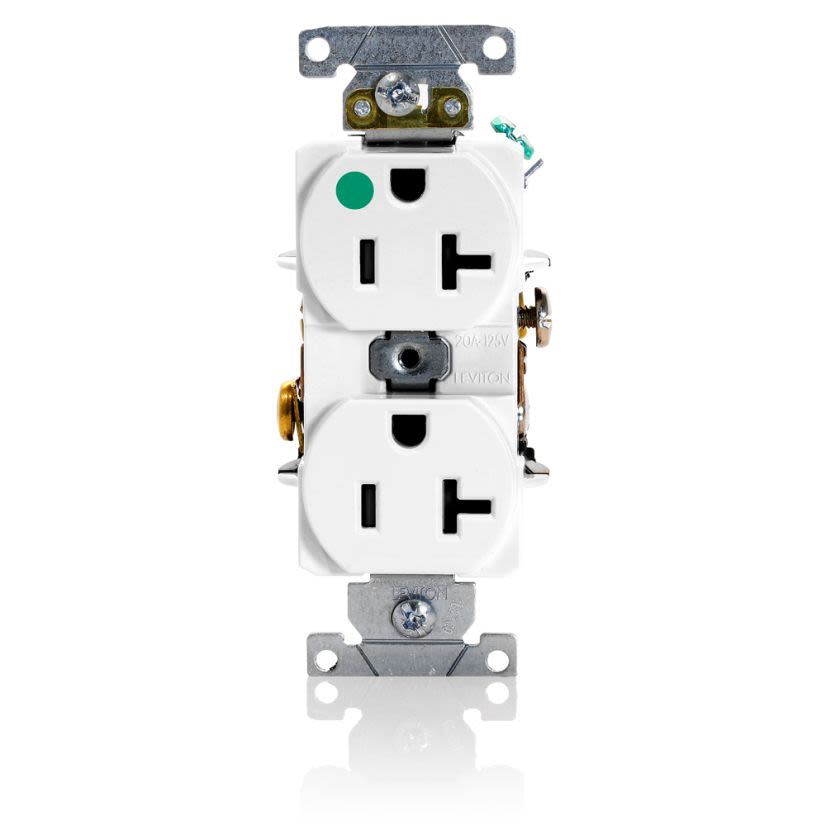

Leviton 8300-HW Heavy Duty Slim Body Straight Blade Duplex Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Leviton 8300-HW
Leviton 8300-HW Heavy Duty Slim Body Straight Blade Duplex Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, WhiteIn Stock: 2more info
|
BrandLeviton
MFG #8300-HW
Werner Part #1312562
UPC078477818916
In Stock: 2more info
|
BrandLeviton
MFG #8300-HW
Werner Part #1312562
UPC078477818916
Product Description
Leviton, 8300-HW, Straight Blade Duplex Receptacle, Heavy Duty Slim Body, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, NEMA WD-6/IP20 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 4.06 in H x 1.51 in W x 1.18 in D Dimensions
Attributes
Documents
Applications
Features
Warranty
Attributes
ColorWhite
Country of OriginMX
Dimensions4.06 in H x 1.51 in W x 1.18 in D
Enclosure TypeIP20
GradeHospital
Horsepower1 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeHeavy Duty Slim Body
Voltage Rating125 V AC
Documents
Applications
Commercial Applications
Features
- Impact-resistant thermoplastic nylon cover and body
- Smooth face does not collect dirt
- Four corner latches securely fasten face
- Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity
- High-performance brass no 10-32 terminal screws to reduce conductor oxidation
- Back and side wire ground termination brass strap version
- Back and side wiring options
- Break-off tabs for easy two-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Power Indication provides permanent green dot lens with 100000 hr LED status indicator
- Nickel plated brass clamp nuts/ground clips
- 14 to 10 AWG wire terminal
- Full rated current limiting
- 2000 VAC minimum dielectric strength
- Self-grounding
Warranty
10 years Limited
