Leviton IPHS5-1LI

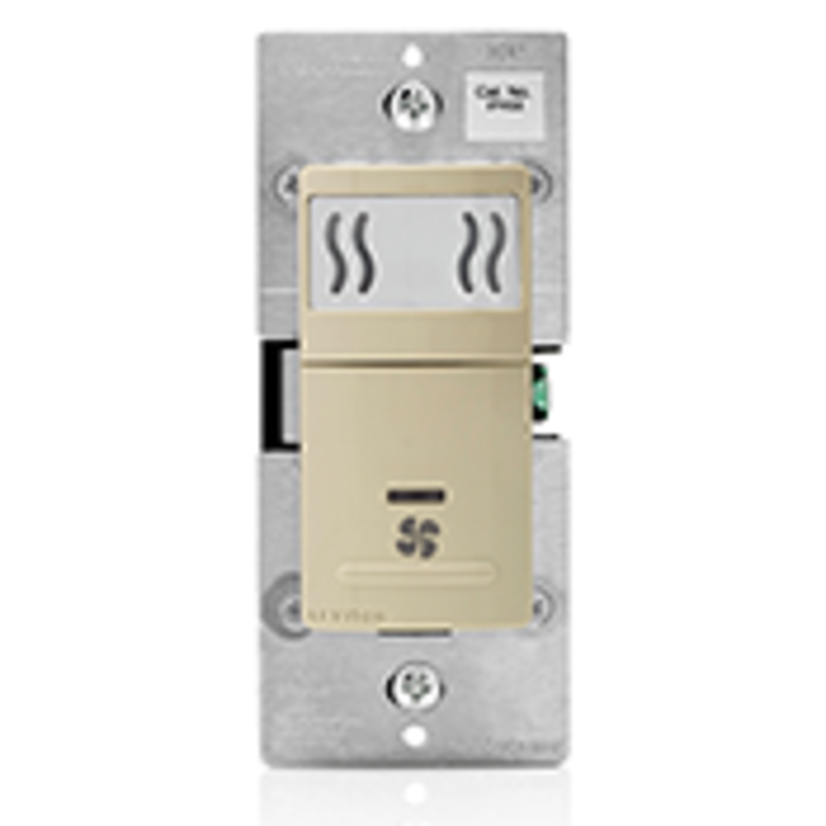

Leviton IPHS5-1LI 1-Pole Manual Humidity Sensor and Fan Control, 120 VAC, 5 A, On/Off Operational Mode, Ivory
Leviton IPHS5-1LI
Leviton IPHS5-1LI 1-Pole Manual Humidity Sensor and Fan Control, 120 VAC, 5 A, On/Off Operational Mode, IvoryNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #IPHS5-1LI
Werner Part #4011338
UPC078477654835
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #IPHS5-1LI
Werner Part #4011338
UPC078477654835
Product Description
Leviton Humidity Sensor and Fan Control, 1-Pole Manual, Series: IPHS5, 120 VAC, 5 A, 1 hp, 6 hp Power, On/Off Operational Mode, Wall Mounting, Threaded Terminal, Ivory, 4.13 in H x 1.75 in W x 1.22 in D
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorIvory
Country of OriginCN
Dimensions4.13 in H x 1.75 in W x 1.22 in D
Electrical Ratings1/6 HP
ManufacturerLeviton
Mounting TypeWall
SeriesIPHS5
Terminal TypeThreaded
Type1-Pole Manual
Type / Style1-Pole Manual
Voltage Rating120 V AC
Documents
Applications
Controlling Ventilation in Areas of High Humidity, Dampness or Rooms Prone to Condensation and Mildew Such as Bathrooms, Basements, Home Spas and Laundry Rooms Applications
Warranty
5 Years
Features
- Automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew
- Sensor uses microprocessor and digital sensing technology to continuously monitor and manage humidity levels in a room
- Built-in timer sets the minimum on time for the ventilation fan
- A sensitivity level adjustment allows users to adjust the sensor's sensitivity to ambient air to prevent false cycling
- Features an air cycle mode which automatically turns ON the ventilation fan for a set period of time and repeats the cycle hourly
- Replaces a 1-pole switch for control of ventilation fan or a fan/light combination
- Fits in a standard wallbox and requires a neutral for operation
- The device's built-in humidistat control meets CALGREEN requirements for indoor air quality and exhaust
- Screw terminals for wiring
- Without wallplate and wire nut
- 10 to 45 min timing
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cULus Listed|2016 CALGREEN|ASHRAE Compliant|California Title 24 Compliant
