Leviton GFWT1-T

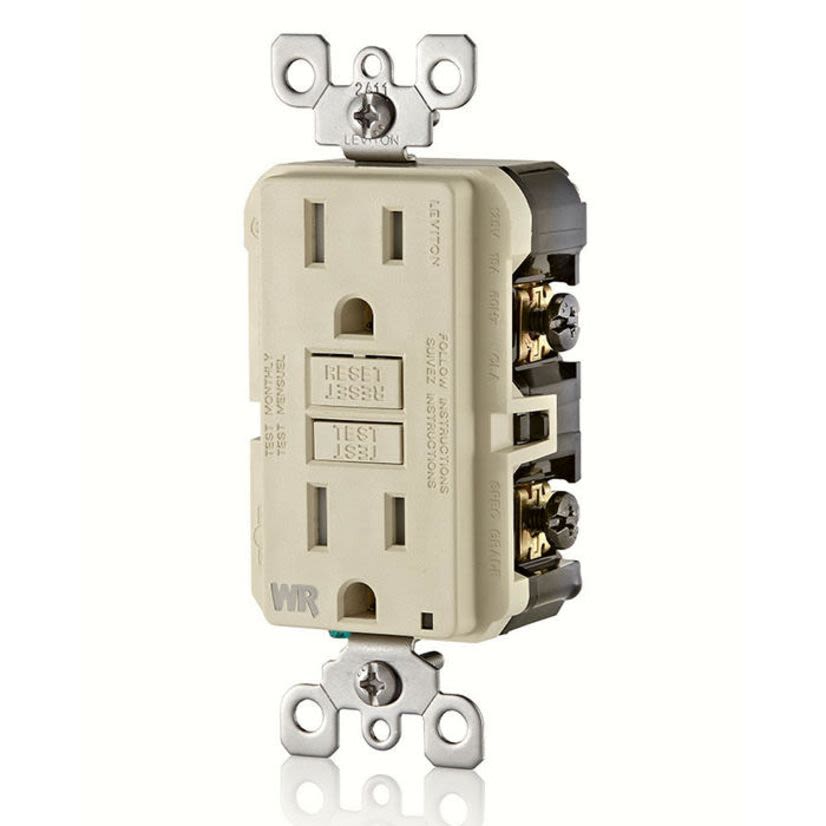

Leviton GFWT1-T Duplex Feed Through Self-Test Slim Tamper/Weather Resistant GFCI Receptacle With Light Almond Test, Reset Button, 125 V AC, 15 A, 2 Poles, 3 Wires, Light Almond
Leviton GFWT1-T
Leviton GFWT1-T Duplex Feed Through Self-Test Slim Tamper/Weather Resistant GFCI Receptacle With Light Almond Test, Reset Button, 125 V AC, 15 A, 2 Poles, 3 Wires, Light AlmondIn Stock: 10more info
|
BrandLeviton
MFG #GFWT1-T
Werner Part #4073722
UPC078477709214
In Stock: 10more info
|
BrandLeviton
MFG #GFWT1-T
Werner Part #4073722
UPC078477709214
Product Description
Leviton GFCI Receptacle, Duplex Feed Through Self-Test Slim Tamper/Weather Resistant, 125 V AC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Residential/Specification Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate, Light Almond, 4.21 in H x 1.69 in W x 1.32 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorLight Almond
Country of OriginCN
Dimensions4.21 in H x 1.69 in W x 1.32 in D
GradeCommercial/Residential/Specification
Horsepower1 hp
ManufacturerLeviton
MaterialPolycarbonate
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Temperature Rating-35 to 66 deg C
Terminal TypeBack/Side Wire
TypeDuplex Feed Through Self-Test Slim Tamper/Weather Resistant
Type / StyleDuplex Feed Through Self-Test Slim Tamper/Weather Resistant
Voltage Rating125 V AC
Applications
Residential, Educational Facilities, Airports, Restaurants, Lodging, Retail Malls, Commercial Offices and Public Areas Applications
Features
- Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI circuit within 3 sec
- Auto monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line load reversal
- Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Stainless steel strap and screws, cold impact resistant face and buttons
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Compatible with all Decora devices and wallplates
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 144.1-06/42 File No. LR57811|Federal Specification WC596|MIL-SPEC A-A-55459-SB|NOM Certified|UL 498/943 File No. E48380
