Leviton GFTR2-IGW

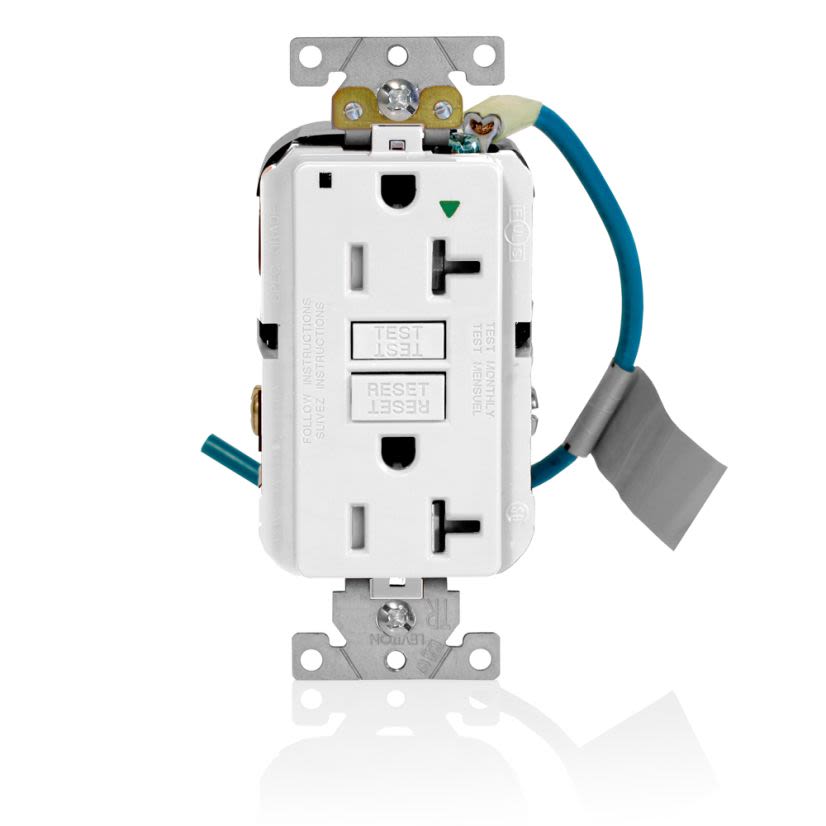

Leviton SmartlockPro GFTR2-IGW Isolated Ground Self-Test Tamper Resistant GFCI Receptacle With White Test, Reset Button, 120 V AC, 20 A, 2 Poles, 3 Wires, White
Leviton GFTR2-IGW
Leviton SmartlockPro GFTR2-IGW Isolated Ground Self-Test Tamper Resistant GFCI Receptacle With White Test, Reset Button, 120 V AC, 20 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Leviton SmartlockPro GFCI Receptacle, Isolated Ground Self-Test Tamper Resistant, 120 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Extra Heavy Duty/Industrial Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate, White, 4.05 in H x 1.74 in W x 1.36 in D Dimensions
Attributes
Documents
Included
Warranty
Features
Specifications
Attributes
ColorWhite
Country of OriginCN
Dimensions4.05 in H x 1.74 in W x 1.36 in D
Frequency Rating60 Hz
GradeExtra Heavy Duty/Industrial
Horsepower1 hp
ManufacturerLeviton
MaterialPolycarbonate
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Temperature Rating-35 to 66 deg C
Terminal TypeBack/Side Wire
TypeIsolated Ground Self-Test Tamper Resistant
Type / StyleIsolated Ground Self-Test Tamper Resistant
Voltage Rating120 V AC
Documents
Included
Mounting Screw, Washer, Instruction Sheet
Warranty
2 Years Limited
Features
- Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed)
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Low profile design is easy to install in all electrical boxes
- Patented SmartlockPro protection prevents resetting when ground fault protection has been lost
- Isolated ground receptacles isolate the strap/ground lead to reduce electrical noise interference to sensitive electronic equipment
- Isolated ground terminal pre-wired with 12 AWG stranded wire for quick assembly
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL943
