Leviton GFNL2-W

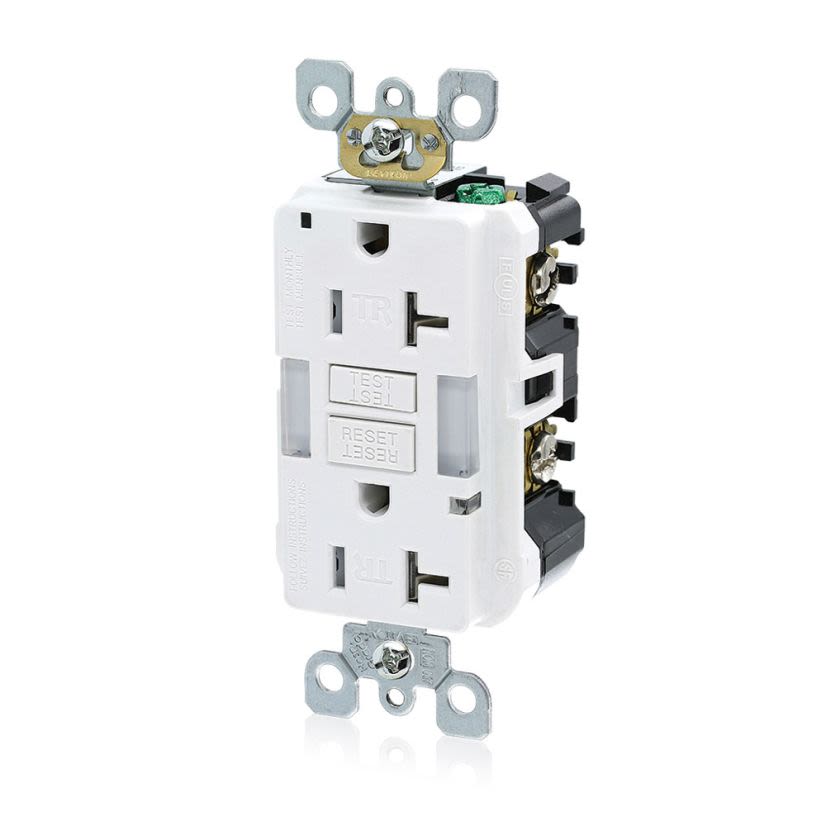

Leviton SmartlockPro Slim GFNL2-W Duplex Feed Through Guidelight Monochromatic Self-Test Slim Tamper Resistant GFCI Receptacle With LED Indicator, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Leviton GFNL2-W
Leviton SmartlockPro Slim GFNL2-W Duplex Feed Through Guidelight Monochromatic Self-Test Slim Tamper Resistant GFCI Receptacle With LED Indicator, 125 V AC, 20 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #GFNL2-W
Werner Part #4160992
UPC078477714850
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #GFNL2-W
Werner Part #4160992
UPC078477714850
Product Description
Leviton SmartlockPro Slim GFCI Receptacle, Duplex Feed Through Guidelight Monochromatic Self-Test Slim Tamper Resistant, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Industrial Grade, -35 to 66 deg C, Back/Side Wire Terminal, Thermoplastic, White, 4.21 in H x 1.69 in W x 1.4 in D Dimensions
Attributes
Documents
Included
Warranty
Features
Specifications
Attributes
ColorWhite
Country of OriginCN
Dimensions4.21 in H x 1.69 in W x 1.4 in D
Frequency Rating60 Hz
GradeCommercial/Industrial
Horsepower1 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
SeriesWRSGF
Temperature Rating-35 to 66 deg C
Terminal TypeBack/Side Wire
TypeDuplex Feed Through Guidelight Monochromatic Self-Test Slim Tamper Resistant
Type / StyleDuplex Feed Through Guidelight Monochromatic Self-Test Slim Tamper Resistant
Voltage Rating125 V AC
Included
Self-Grounding Clip
Warranty
2 Years Limited
Features
- Sensor provides automatic ON/OFF based on ambient lighting
- Dual lens provides visible light with a variety of plugs or transformers
- Custom designed lenses with edge mounted LED's improve light dispersion
- Saves space by eliminating the need to use an outlet for a plug-in nightlight
- Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI circuit within 3 sec
- Auto monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line load reversal
- Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Compatible with all Decora devices and wallplates
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 144.1-06/42 File No. LR57811|Federal Specification WC596|NOM Certified|UL 498/943 File No. E48380
