Leviton CS320-2E

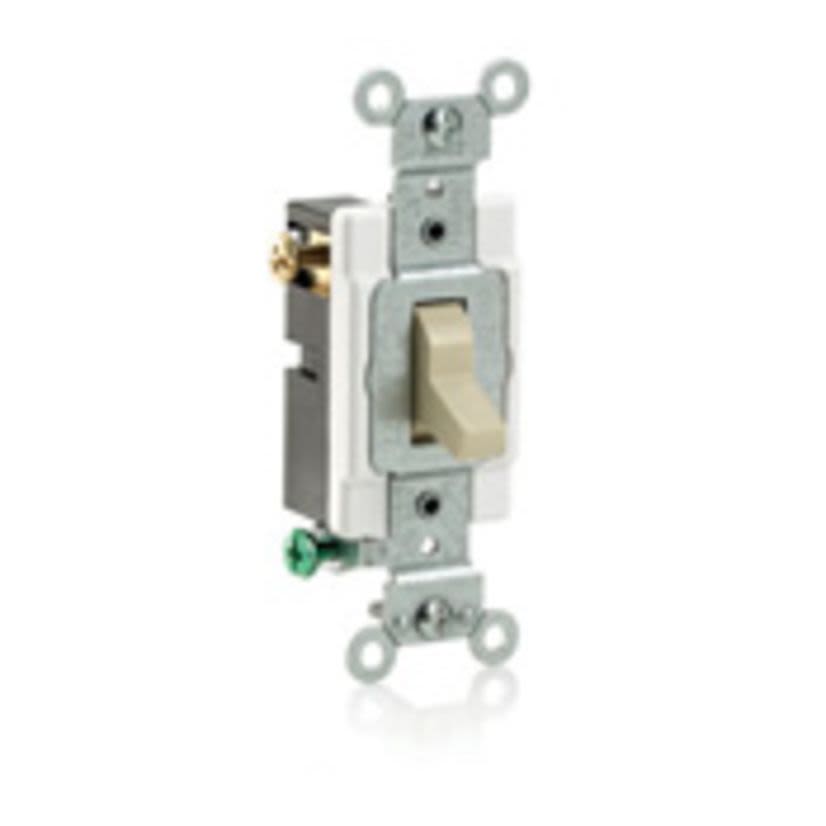

LevitonĀ® CS320-2E 3-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VA Power Rating
Leviton CS320-2E
LevitonĀ® CS320-2E 3-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VA Power RatingNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #CS320-2E
Werner Part #1406813
UPC078477073063
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #CS320-2E
Werner Part #1406813
UPC078477073063
Product Description
LevitonĀ® AC Quiet Toggle Switch, 3-Way Grounding, 120/277 VAC, 20 A, 800 W, 1000 VA Power, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Side Wired Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Black, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.31 in W x 0.92 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeToggle
ColorBlack
Country of OriginUnited States
Dimensions46 in H x 1.31 in W x 0.92 in D
Electrical Ratings800 W, 1000 VA
Enclosure TypeNEMA WD-1/WD-6
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Temperature Rating-40 to 120 deg C Operating Temperature
Terminal TypeSide Wire
Type3-Way Grounding
Type / Style3-Way Grounding
Voltage Rating120/277 VAC
Features
Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installationHeavy gauge, rust resistant steel mounting strapAccepts no 14 to 12 AWG copper or copper clad wireConvenient break-OFF plaster ears for best alignmentLarge switch contacts for maximum conductivity1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
