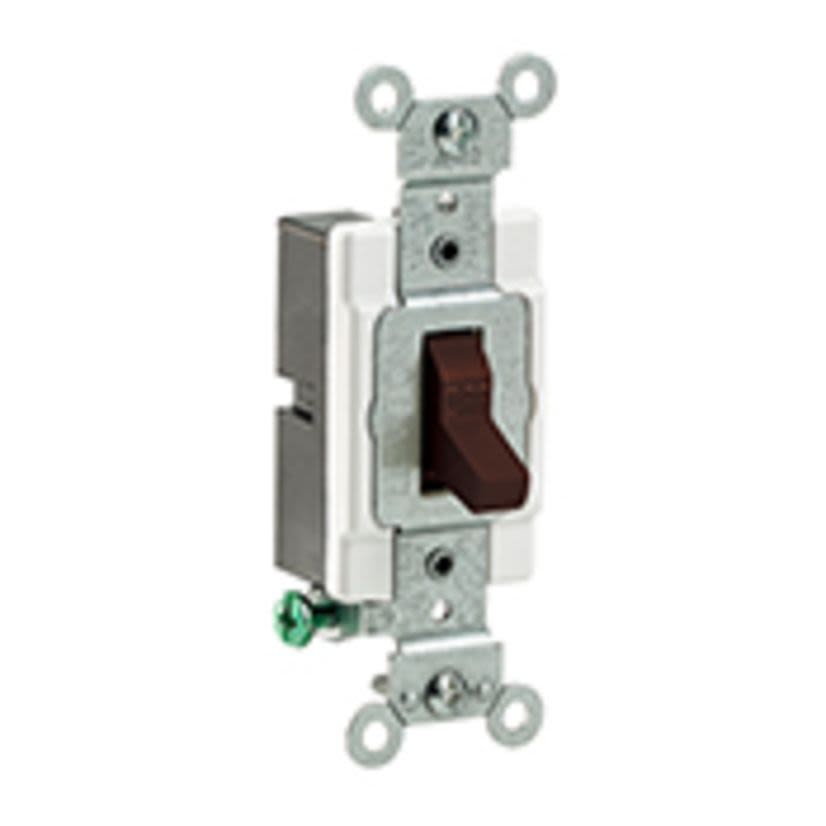

Leviton CS115-2
LevitonĀ® CS115-2 Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating, SP Contact
Leviton CS115-2
LevitonĀ® CS115-2 Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating, SP ContactNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
LevitonĀ® AC Quiet Toggle Switch, Grounding, 120/277 VAC, 15 A, 1/2, 2 hp Power, SP Contact Configuration, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Side Wired Terminal, Thermoplastic, Brown, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.31 in W x 0.92 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeToggle
ColorBrown
Country of OriginUnited States
Dimensions46 in H x 1.31 in W x 0.92 in D
Electrical Ratings1/2, 2 hp
Enclosure TypeNEMA WD-1/WD-6
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Temperature Rating-40 to 120 deg C Operating Temperature
Terminal TypeSide Wire
TypeGrounding
Type / StyleGrounding
Voltage Rating120/277 VAC
Documents
Features
Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installationHeavy gauge, rust resistant steel mounting strapAccepts no 14 to 12 AWG copper or copper clad wireConvenient break-OFF plaster ears for best alignmentLarge switch contacts for maximum conductivity1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
