Leviton 8310-I

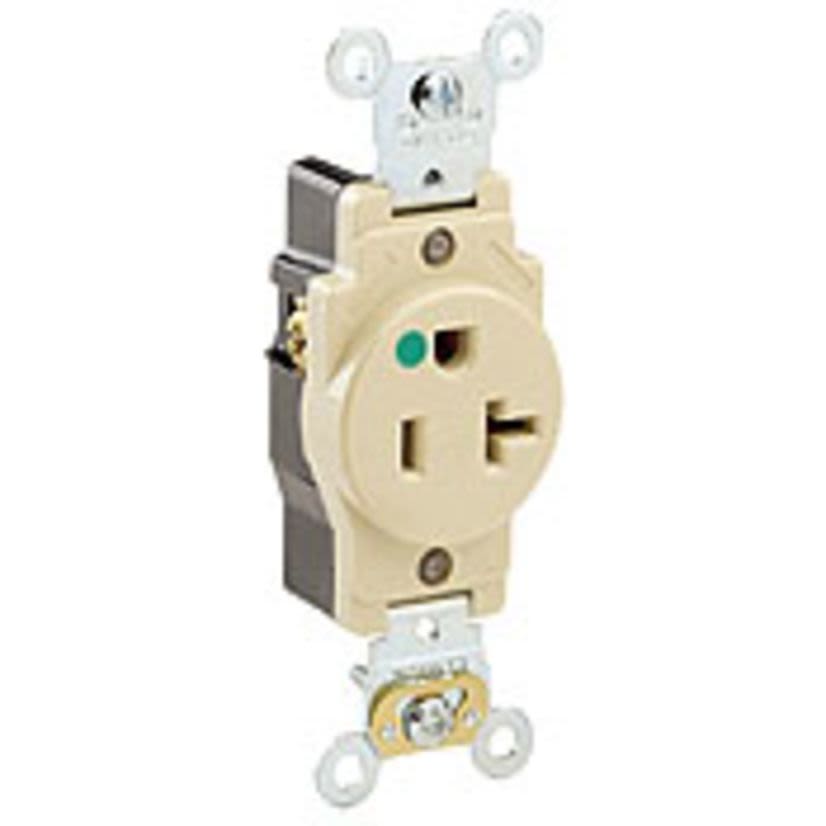

Leviton 8310-I Extra Heavy Duty Single Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Ivory
Leviton 8310-I
Leviton 8310-I Extra Heavy Duty Single Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, IvoryIn Stock: 2more info
|
BrandLeviton
MFG #8310-I
Werner Part #46228
UPC078477264614
In Stock: 2more info
|
BrandLeviton
MFG #8310-I
Werner Part #46228
UPC078477264614
Product Description
Leviton, 8310-I, Straight Blade Receptacle, Extra Heavy Duty Single, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Ivory, 46 in H x 1.31 in W x 16 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorIvory
Country of OriginMX
Dimensions46 in H x 1.31 in W x 16 in D
GradeCommercial
Horsepower1 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeExtra Heavy Duty Single
Type / StyleExtra Heavy Duty Single
Voltage Rating125 V AC
Documents
Applications
Health Care Facilities, Manufacturing Plants and School Applications
Warranty
10 years
Features
- Impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten face
- High performance brass #10-32 terminal screws to reduce conductor oxidation
- Back and side wire ground termination brass strap version
- Back and side wiring options
- Break-OFF tabs allow easy 2-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Power Indication provides permanent green dot lens with 100000 hr LED status indicator
- Smooth face does not collect dirt
- 4 corner latches securely fasten face
- Extra heavy duty triple wipe, brass T contacts for superior contact and conductivity
- Break-off tabs for easy two-circuit conversion
- Self-grounding
- 2000 VAC dielectric strength
- Plated brass terminal screw
- Nylon face, zinc plated steel strap
- Brass ground clips, zinc plated steel clamp nuts
- Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification W-C-596 File No. E13399|UL 498HG File No. E13399|UL94 V-2 Flammability Rating
