Leviton 8215-C

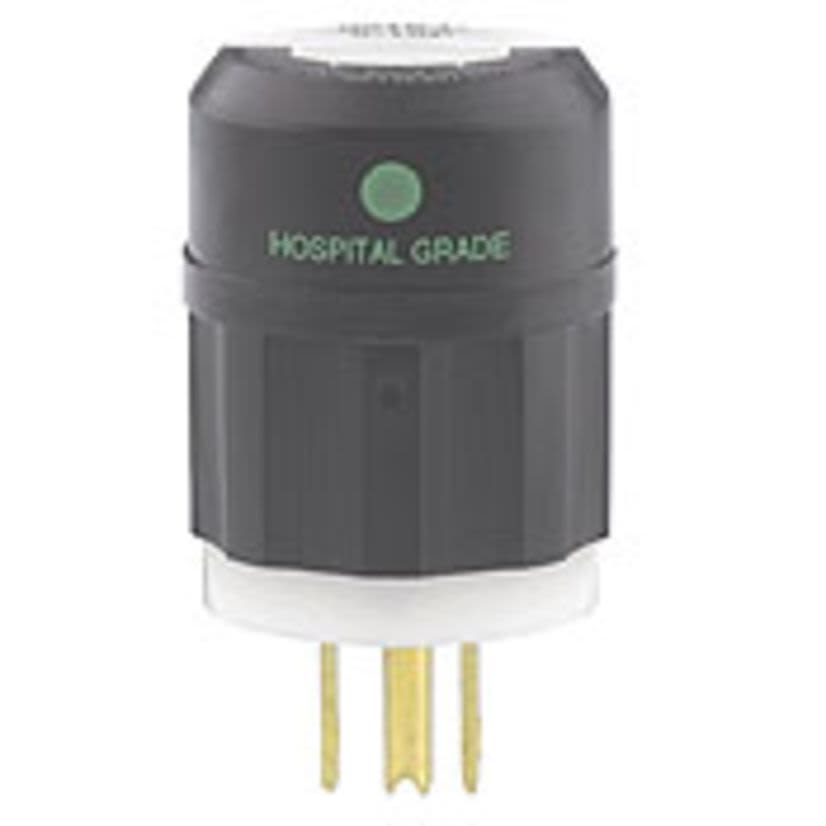

Leviton® Black & White® 8215-C Cable Mount Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Leviton 8215-C
Leviton® Black & White® 8215-C Cable Mount Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/WhiteNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #8215-C
Werner Part #46217
UPC078477795262
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #8215-C
Werner Part #46217
UPC078477795262
Product Description
Leviton® Black & White® Straight Blade Plug, Cable Mount Grounding, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15P, Hospital Grade, 0.25 to 0.685 in Cord Dia, -40 to 60 deg C, Nylon, Black/White, 1.53 in Dia x 1.98 in H
Attributes
Documents
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions1.53 in Dia x 1.98 in H
GradeHospital
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-15P
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
TypeCable Mount Grounding
Type / StyleCable Mount Grounding
Voltage Rating125 VAC
Documents
Features
Unmatched quality and performance confirmed by rigorous UL 498 testingClearly identified by green dotRugged construction resists impact, sunlight, chemicals and rough useAll contacts are solid 1-piece brass for better conductivityTriple wipe, heavy duty power contacts set in deep pockets to resist damageCaptive, color coded brass 8 AWG terminal screwsUnique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in), providing secure grip without damaging cord jacket SVT 18/3 to so 14/3 AWG with strain relief insert, up to ST 10/3 AWG when strain relief insert is removedPower indication devices equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 yearsZinc plated steel assembly screws and solid brass blade and contactsHospital grade is clearly identified by green dot18 to 10 AWG terminal accommodationThermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screwsSuper tough nylon body
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|NOM 057|NEMA WD-1/WD-6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|Federal Specification WC596|UL94 V-2 Flammability Rating
