Leviton 7251-C

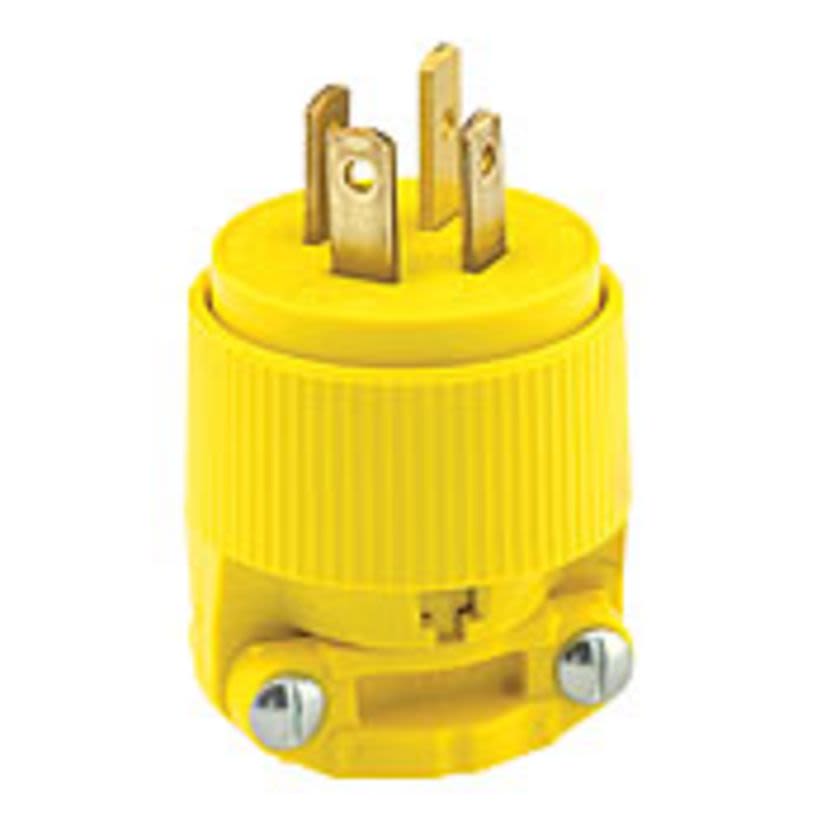

Leviton® Black & White® 7251-C 3-Phase Non-Grounding Straight Blade Plug, 120/208 VAC, 20 A, 4 Poles, 4 Wires, Yellow
Leviton 7251-C
Leviton® Black & White® 7251-C 3-Phase Non-Grounding Straight Blade Plug, 120/208 VAC, 20 A, 4 Poles, 4 Wires, YellowNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Leviton® Black & White® Straight Blade Plug, 3-Phase Non-Grounding, 120/208 VAC, 20 A, 2 hp, 4 Pole, 4 Wires, NEMA 18-20P, Industrial Grade, 0.687 to 0.875 in Cord Dia, -40 to 60 deg C, Nylon, Yellow
Attributes
Documents
Features
Specifications
Attributes
ColorYellow
Country of OriginFinland
GradeIndustrial
Horsepower2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 18-20P
Number of Poles4
Number of Wires4
Temperature Rating-40 to 60 deg C
Type3-Phase Non-Grounding
Type / Style3-Phase Non-Grounding
Voltage Rating120/208 VAC
Documents
Features
Impact resistant thermoplastic nylon cover and bodySmooth face does not collect dirtFour corner latches securely fasten faceLarge, triple wipe, brass "T" contacts for superior contact and conductivityBack and side wiring optionsBrass terminal screws to reduce conductor oxidationBreak-off tabs for easy 2-circuit conversionApron barrier to prevent accidental contact between terminal screw heads and metal boxExclusive V-shaped, serrated back wiring clamps for superior contact and conductivityWire lead receptacles for fast and easy installation14 to 16 AWG terminal accommodation
Specifications
Standards/Approvals: RoHS Compliant|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498|UL File No. E13399
