Leviton 69W76

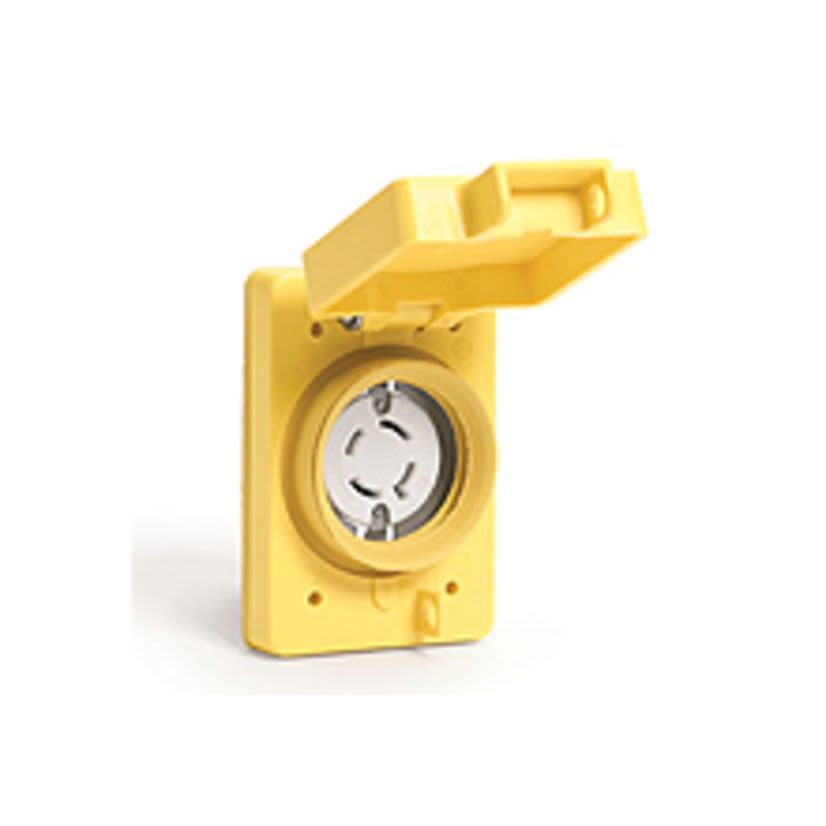

Leviton® Wetguard® 69W76 3-Phase Y Grounding Single Locking Receptacle With Watertight Cover, 480 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Leviton 69W76
Leviton® Wetguard® 69W76 3-Phase Y Grounding Single Locking Receptacle With Watertight Cover, 480 VAC, 30 A, 3 Poles, 4 Wires, YellowNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #69W76
Werner Part #3833969
UPC078477075128
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #69W76
Werner Part #3833969
UPC078477075128
Product Description
Leviton® Wetguard® Locking Receptacle, 3-Phase Y Grounding Single, 480 VAC, 30 A, 10 hp, 3 Poles, 4 Wires, NEMA L16-30R, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Back Wired Terminal, Nylon, Yellow, 4.63 in H x 3.13 in W
Attributes
Documents
Features
Specifications
Attributes
ColorYellow
Country of OriginMexico
Dimensions4.63 in H x 3.13 in W
Enclosure TypeIP67
GradeIndustrial
Horsepower10 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA L16-30R
Number of Poles3
Number of Wires4
Temperature Rating-40 to 60 deg C
Terminal TypeBack Wire
Type3-Phase Y Grounding Single
Type / Style3-Phase Y Grounding Single
Voltage Rating480 VAC
Documents
Features
Box mounting14 to 8 AWG terminal accommodationFlush mount
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42/LR406|Federal Specification WC596/E13399|UL 498 File No. E13399|UL94 V-0 Flammability Rating
