Leviton 5G108-RI5

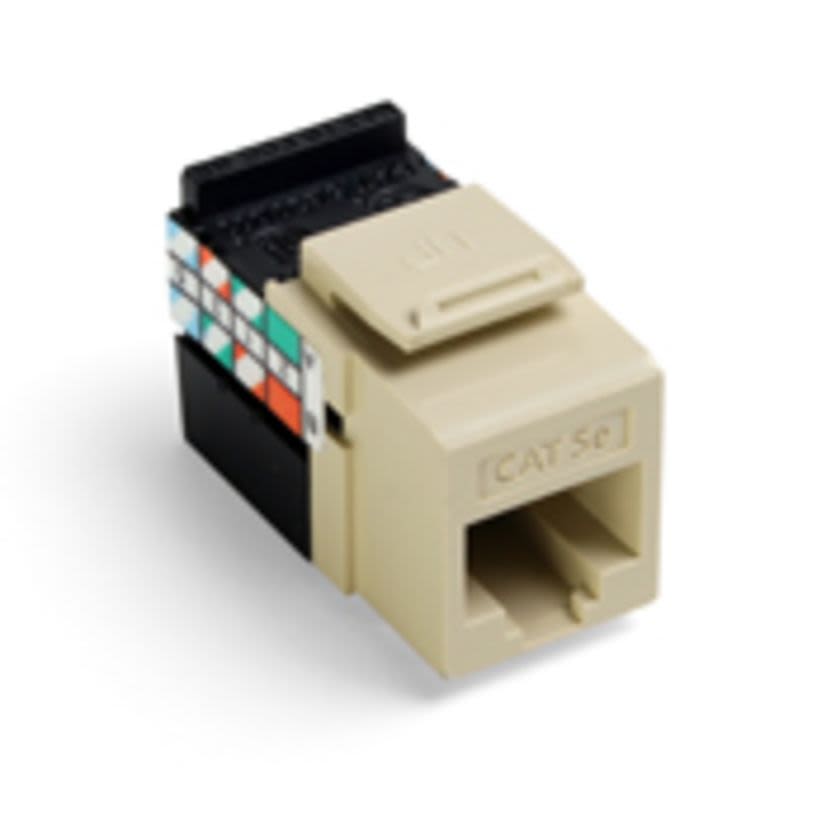

Leviton® GigaMax® QuickPort® 5G108-RI5 8-Conductor 8-Position UTP Connector, Cat 5e Module, Panel/Surface Mount, 1 Port, Plastic, Ivory
Leviton 5G108-RI5
Leviton® GigaMax® QuickPort® 5G108-RI5 8-Conductor 8-Position UTP Connector, Cat 5e Module, Panel/Surface Mount, 1 Port, Plastic, IvoryOut of Stockmore info
|
BrandLeviton
MFG #5G108-RI5
Werner Part #1508275
UPC078477170304
Out of Stockmore info
|
BrandLeviton
MFG #5G108-RI5
Werner Part #1508275
UPC078477170304
Product Description
Leviton® GigaMax® QuickPort® UTP Connector, 8-Conductor 8-Position, Cat 5e Module, Panel/Surface Mount, 1 Port, Plastic, Ivory, 0.89 in H x 0.64 in W x 1.17 in D
Attributes
Documents
Features
Specifications
Warranty
Attributes
ColorIvory
Country of OriginUnited States
Dimensions0.89 in H x 0.64 in W x 1.17 in D
GTIN00078477170304
ManufacturerLeviton
MaterialPlastic
Module TypeCat 5e
Mounting TypeSurface/Panel
Number of Ports1
Series8-Conductor 8-Position
Type8-Conductor 8-Position
Type / Style8-Conductor 8-Position
Features
- Permanently laser engraved
- Fire retardant
- Individual port configurability allows specification flexibility
- Narrow body connector allows high port density in a small area
- Robust 1-piece lead frame design
- Performance supports high megabit and shared sheath application
- To ID ports, use different colored modules for each application
- Dual wiring code label allows connector to be wired to either T568A/T568B
- Phosphor bronze contact material
Specifications
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI/TIA-568-C.2/1096-A|cULus Listed|CSA Certified|IEEE 802.3at/802.3bt|NEC Article 800|FCC Part 68|ACA Certified|UL94 V-0 Flammability Rating
Warranty
1 Year Limited
