Leviton 5821-T

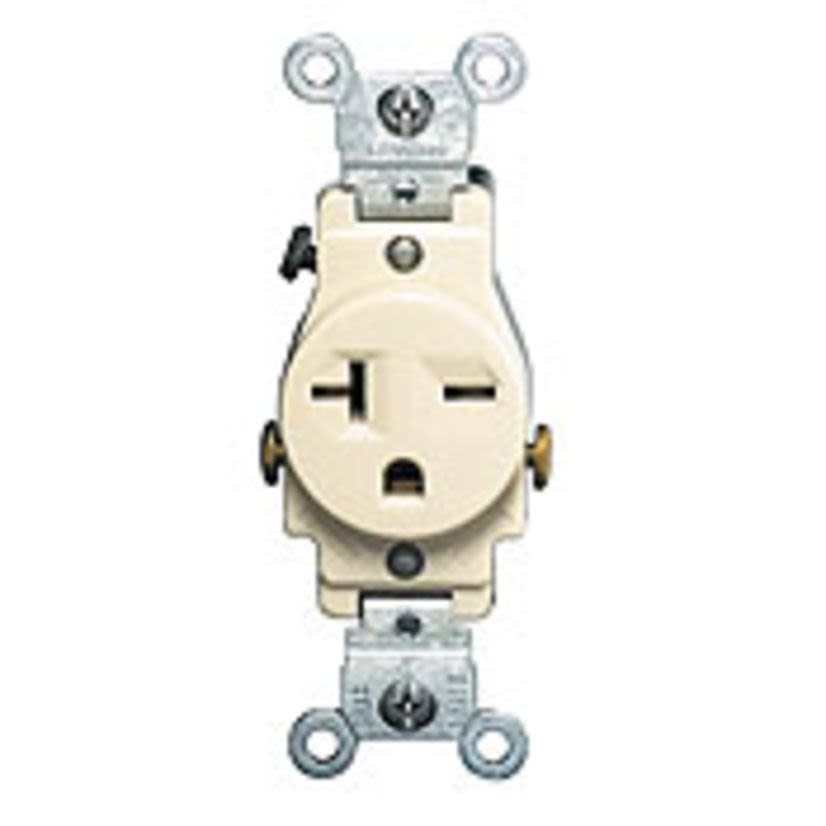

LevitonĀ® 5821-T Heavy Duty Grounding Narrow Body Straight Blade Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
Leviton 5821-T
LevitonĀ® 5821-T Heavy Duty Grounding Narrow Body Straight Blade Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Light AlmondNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #5821-T
Werner Part #2291888
UPC078477271254
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #5821-T
Werner Part #2291888
UPC078477271254
Product Description
LevitonĀ® Straight Blade Single Receptacle, Heavy Duty Grounding Narrow Body, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA 6-20R NEMA, Commercial Grade, NEMA WD-2/WD-6 Enclosure, -40 to 60 deg C, Side Wired Terminal, Nylon, Light Almond, 4.06 in H x 1.38 in W x 1.06 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorLight Almond
Country of OriginMexico
Dimensions4.06 in H x 1.38 in W x 1.06 in D
Enclosure TypeNEMA WD-2/WD-6
GradeCommercial
Horsepower2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 6-20R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeSide Wire
TypeHeavy Duty Grounding Narrow Body
Type / StyleHeavy Duty Grounding Narrow Body
Voltage Rating250 VAC
Documents
Features
Manufactured to withstand the demands of commercial and institutional applicationsHeavy duty brass power contacts for maximum conductivity and plug retentionShallow design for maximum wiring room in box
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|CSA C22.2 No. 42 File No. 152105|NOM 057|UL Federal Specification WC-596 File No. E13399|UL 498 File No. E13399|UL 94 Flammability Rating
