Leviton 560P7W

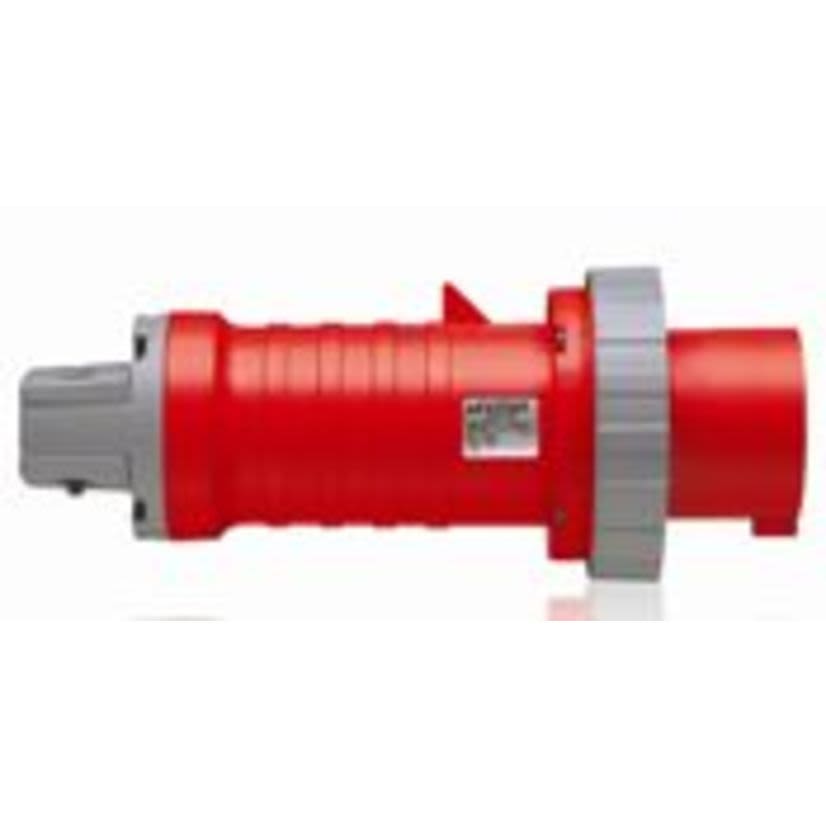

LevitonĀ® 560P7W Series II North American Configuration Watertight Pin and Sleeve Plug, 277/480 VAC, 60 A, 4 Poles, 5 Wires, Red
Leviton 560P7W
LevitonĀ® 560P7W Series II North American Configuration Watertight Pin and Sleeve Plug, 277/480 VAC, 60 A, 4 Poles, 5 Wires, RedNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #560P7W
Werner Part #45656
UPC078477838297
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #560P7W
Werner Part #45656
UPC078477838297
Product Description
LevitonĀ® Pin and Sleeve Plug, North American Configuration Watertight, Series: Series II, 277/480 VAC, 60 A, 50/60 Hz Frequency, 4 Pole, 5 Wire, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Screw Terminal, ValoxĀ® 357, Red, 4.49 in Dia x 10.83 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorRed
Country of OriginCzechia
Dimensions4.49 in Dia x 10.83 in L
Enclosure TypeIP67
Frequency Rating50/60 Hz
GradeIndustrial
ManufacturerLeviton
MaterialValoxĀ® 357
Number of Poles4
Number of Wires5
SeriesSeries II
Terminal TypeScrew
TypeWatertight
Type / StyleNorth American Configuration Watertight
Voltage Rating277/480 VAC
Documents
Features
Rugged housing, made of superior performance PBT, provides maximum corrosion protection and makes the device more resistant to impact, abuse and temperature extremes and V-0 flame rated and superior UV stabilitySolid brass pinsReinforced nylon contact carrier
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE 73/23/EEC|CE 93/68/EEC|CSA C22.2 No. 182.1|IEC 60309-1|IEC 60309-2|UL 1682|UL 1686|UL94 V-2 Flammability Rating
