Leviton 5362-IGW

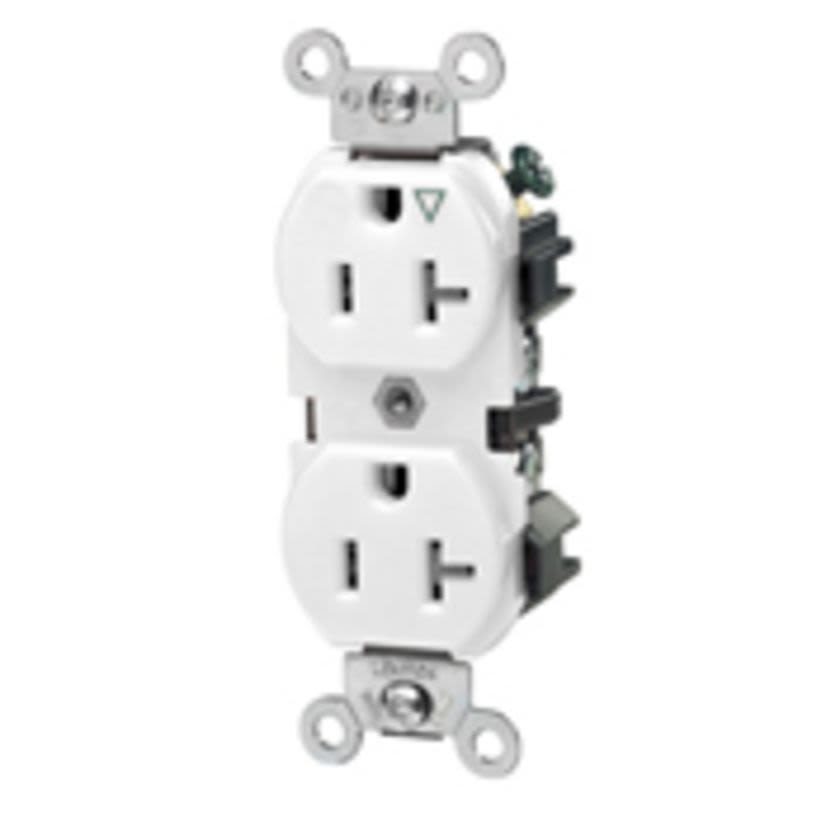

LevitonĀ® 5362-IGW Heavy Duty Isolated Ground Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Receptacle

Leviton 5362-IGW

LevitonĀ® 5362-IGW Heavy Duty Isolated Ground Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
In Stock: 16more info
|

BrandLeviton

MFG #5362-IGW

Werner Part #1312905

UPC078477053270

In Stock: 16more info
|

BrandLeviton

MFG #5362-IGW

Werner Part #1312905

UPC078477053270

Product Description

LevitonĀ® Straight Blade Duplex Receptacle, Heavy Duty Isolated Ground, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA, Industrial/Specification Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wired Terminal, Thermoplastic, White, 4.06 in H x 1.33 in W x 1.12 in D Dimensions
Attributes
ColorWhite
Country of OriginMexico
Dimensions4.06 in H x 1.33 in W x 1.12 in D
Enclosure TypeNEMA WD-1/WD-6
GradeIndustrial/Specification
Horsepower1 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeHeavy Duty Isolated Ground
Type / StyleHeavy Duty Isolated Ground
Voltage Rating125 VAC
