Leviton 5269-CY

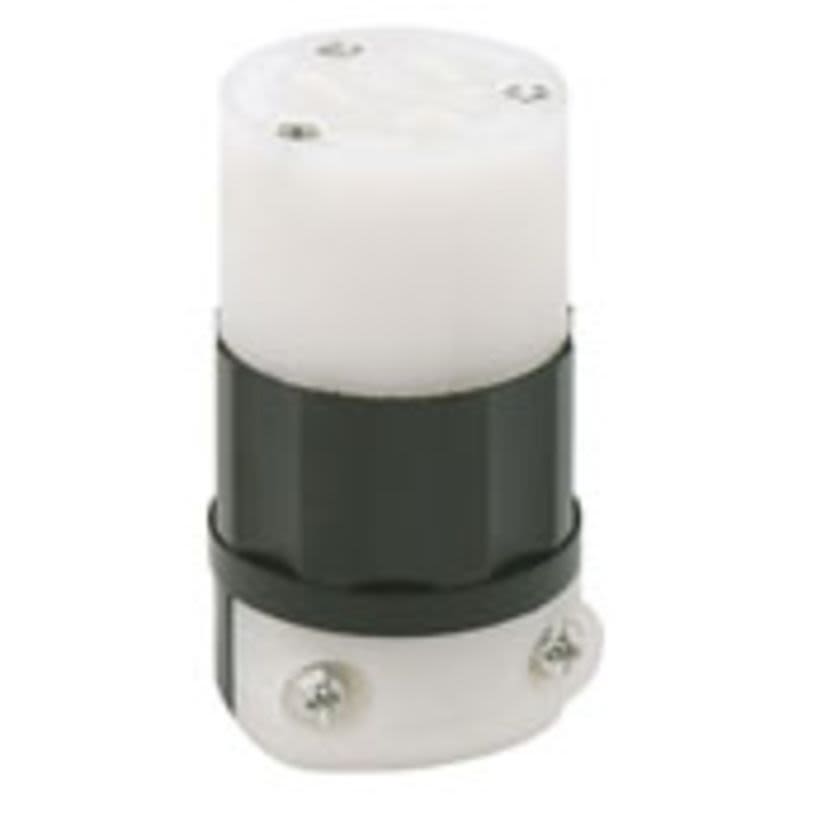

Leviton® Black & White® 5269-CY Cable Mount Grounding Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, White/Yellow
Leviton 5269-CY
Leviton® Black & White® 5269-CY Cable Mount Grounding Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, White/YellowIn Stock: 20more info
|
BrandLeviton
MFG #5269-CY
Werner Part #45534
UPC078477795323
In Stock: 20more info
|
BrandLeviton
MFG #5269-CY
Werner Part #45534
UPC078477795323
Product Description
Leviton® Black & White® Straight Blade Connector, Cable Mount Grounding, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15R, Industrial Grade, 0.25 to 0.685 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, White/Yellow, 1.49 in Dia x 2.76 in H
Attributes
Documents
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions1.49 in Dia x 2.76 in H
GradeIndustrial
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
TypeCable Mount Grounding
Type / StyleCable Mount Grounding
Voltage Rating125 VAC
Features
Rugged nylon construction resists impact, sunlight, chemicals and rough useAll contacts are solid 1-piece brass for better conductivityTriple wipe, heavy duty power contacts set in deep pockets to resist damageCaptive, color coded brass 8 AWG terminal screwsUnique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in), providing secure grip without damaging cord jacket SVT 18/3 to so 14/3 AWG with strain relief insert, up to ST 10/3 AWG when strain relief insert is removedPower indication devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 yearsZinc plated steel assembly screws and solid brass blade and contactsThermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screwsSuper tough nylon body18 to 10 AWG terminal accommodation
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|NOM 057|NEMA WD-1/WD-6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|Federal Specification WC596|UL94 V-2 Flammability Rating
