Leviton 5261-I

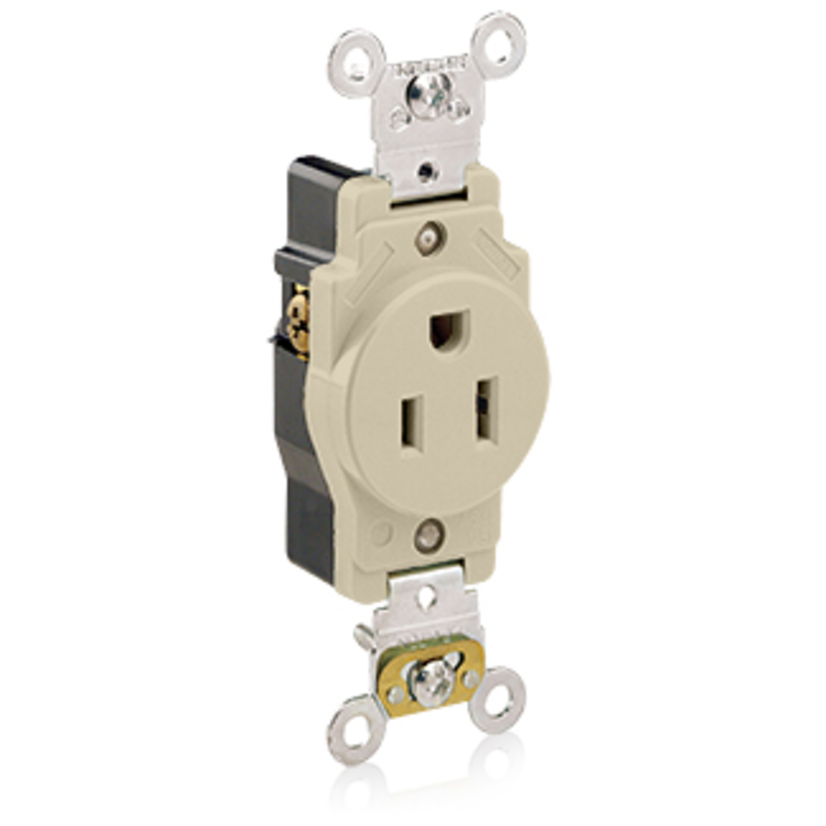

LevitonĀ® 5261-I 1-Phase Heavy Duty Single Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Leviton 5261-I
LevitonĀ® 5261-I 1-Phase Heavy Duty Single Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, IvoryIn Stock: 76more info
|
In Stock: 76more info
|
Product Description
LevitonĀ® Straight Blade Receptacle, 1-Phase Heavy Duty Single, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial Grade, -40 to 60 deg C, Back/Side Wired Terminal, Thermoplastic, Ivory, 46 in H x 1.31 in W x 16 in D
Attributes
Documents
Features
Specifications
Attributes
ColorIvory
Country of OriginMexico
Dimensions46 in H x 1.31 in W x 16 in D
GradeCommercial
Horsepower1/2 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type1-Phase Heavy Duty Single
Type / Style1-Phase Heavy Duty Single
Voltage Rating125 VAC
Features
Impact resistant thermoplastic nylon cover and bodyFour corner latches securely fasten faceLarge triple wipe, brass "T" contacts for superior contact and conductivityBack and side wiring optionsBrass terminal screws to reduce conductor oxidationBreak-OFF tabs allow easy 2-circuit conversionApron barrier to prevent accidental contact between terminal screw heads and metal boxExclusive V-shaped, serrated back wiring clamps for superior contact and conductivityWire lead receptacles for fast and easy installation
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification W-C-596 File No. E13399|UL 498 File No. E13399|UL94 V-2 Flammability Rating
