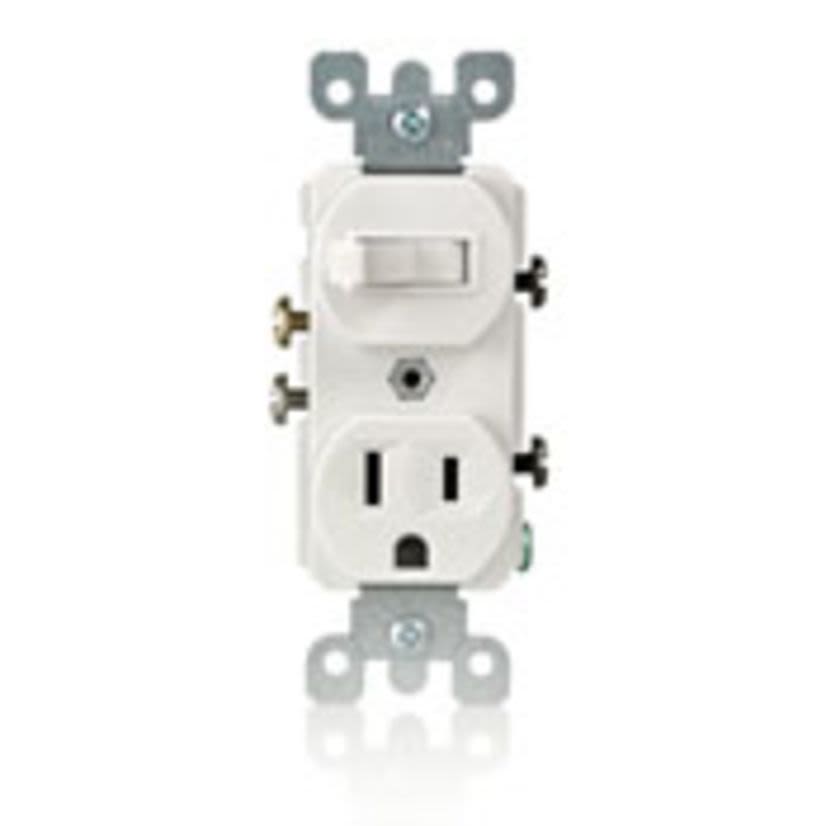

Leviton 5225
LevitonĀ® 5225 Duplex Combination Switch and Receptacle, 15 A, 120/277 VAC, 1/2 hp at 120 VAC, 2 hp at 240/277 VAC, 1 Poles, 14 to 12 AWG Wire
Leviton 5225
LevitonĀ® 5225 Duplex Combination Switch and Receptacle, 15 A, 120/277 VAC, 1/2 hp at 120 VAC, 2 hp at 240/277 VAC, 1 Poles, 14 to 12 AWG WireNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
LevitonĀ® Combination Switch and Receptacle, Duplex, 15 A, 120/277 VAC, 1/2 hp at 120 VAC, 2 hp at 240/277 VAC Electrical Rating, 1 Pole, 14 to 12 AWG Wire, NEMA 5-15R Enclosure, Surface/Wallplate Mounting, Grounded Grounding Style, Commercial Grade, Side Wired Terminal, Withstands 1.5 kV for 1 min Dielectric Strength, Thermoplastic, Ivory, 4.2 in H x 1.62 in W x 16 in D
Attributes
Documents
Features
Specifications
Attributes
ColorIvory
Country of OriginMexico
Dimensions4.2 in H x 1.62 in W x 16 in D
Electrical Ratings15 A, 120/277 VAC
Enclosure TypeNEMA 5-15R
GradeCommercial
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeThreaded
Number of Poles1
Size of Wire14 to 12 AWG
Terminal TypeSide Wire
TypeDuplex
Type / StyleDuplex
Features
1/2 hp at 120 VAC power rating12 to 14 in-lb torqueMaximum 30 deg C rise-40 to 120 deg C temperature ratingSteel strap and thermoplastic toggle actuator15 A, 120 VAC switch, 125 VAC receptacle electrical rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|CSA C22.2 No. 111 File No. 152105/LR3413|NOM 057|NEMA WD-1/WD-6|UL94 V-2 Flammability Rating|UL File No. E7458/20
