Leviton 5015-W

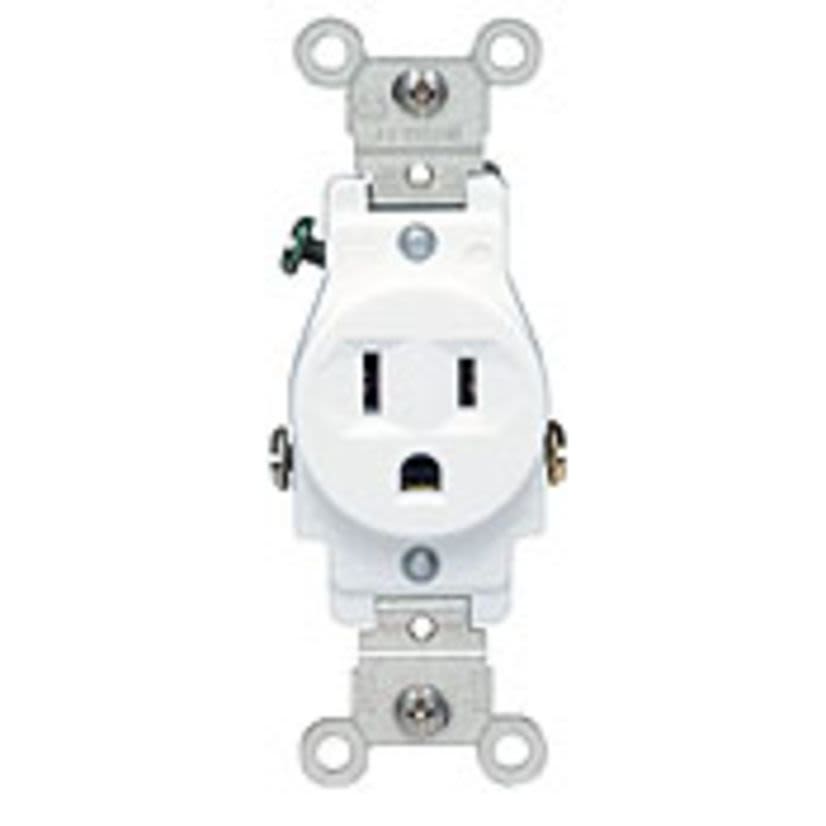

LevitonĀ® 5015-W Heavy Duty Grounding Narrow Body Straight Blade Single Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Leviton 5015-W
LevitonĀ® 5015-W Heavy Duty Grounding Narrow Body Straight Blade Single Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, WhiteIn Stock: 35more info
|
BrandLeviton
MFG #5015-W
Werner Part #45468
UPC078477206058
In Stock: 35more info
|
BrandLeviton
MFG #5015-W
Werner Part #45468
UPC078477206058
Product Description
LevitonĀ® Straight Blade Single Receptacle, Heavy Duty Grounding Narrow Body, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA, Commercial Grade, NEMA WD-2/WD-6 Enclosure, -40 to 60 deg C, Side Wired Terminal, Nylon, White, 4.06 in H x 1.38 in W x 1.06 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorWhite
Country of OriginMexico
Dimensions4.06 in H x 1.38 in W x 1.06 in D
Enclosure TypeNEMA WD-2/WD-6
GradeCommercial
Horsepower1/2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeSide Wire
TypeHeavy Duty Grounding Narrow Body
Type / StyleHeavy Duty Grounding Narrow Body
Voltage Rating125 VAC
Documents
Features
Manufactured to withstand the demands of commercial and institutional applicationsHeavy duty brass power contacts for maximum conductivity and plug retentionShallow design for maximum wiring room in box
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|CSA C22.2 No. 42 File No. 152105|NOM 057|UL Federal Specification WC-596 File No. E13399|UL 498 File No. E13399|UL 94 Flammability Rating
