Leviton 4770-C

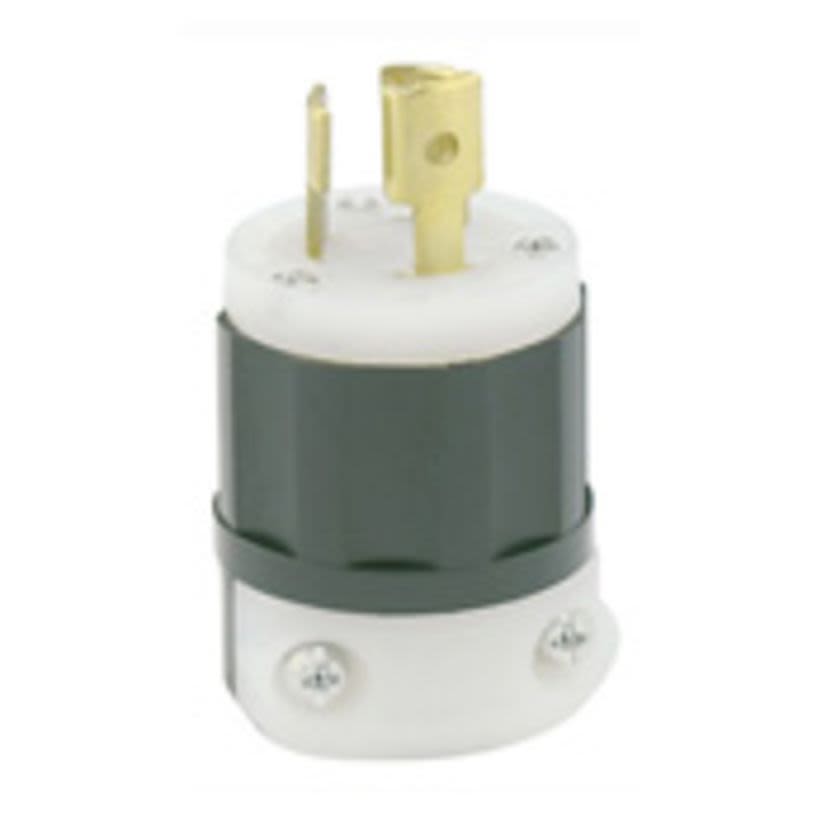

Leviton® Black & White® 4770-C Cable Mount Grounding Locking Plug, 277 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Leviton 4770-C
Leviton® Black & White® 4770-C Cable Mount Grounding Locking Plug, 277 VAC, 15 A, 2 Poles, 3 Wires, Black/WhiteIn Stock: 93more info
|
BrandLeviton
MFG #4770-C
Werner Part #45424
UPC078477795767
In Stock: 93more info
|
BrandLeviton
MFG #4770-C
Werner Part #45424
UPC078477795767
Product Description
Leviton® Black & White® Locking Plug, Cable Mount Grounding, 277 VAC, 15 A, 2 hp, 2 Poles, 3 Wires, NEMA L7-15P, Industrial Grade, 0.24 to 0.7 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.53 in Dia x 1.98 in H
Attributes
Documents
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions1.53 in Dia x 1.98 in H
GradeIndustrial
Horsepower2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA L7-15P
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
TypeCable Mount Grounding
Type / StyleCable Mount Grounding
Voltage Rating277 VAC
Features
Certified for current interrupting at full rated current
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
