Leviton 2810

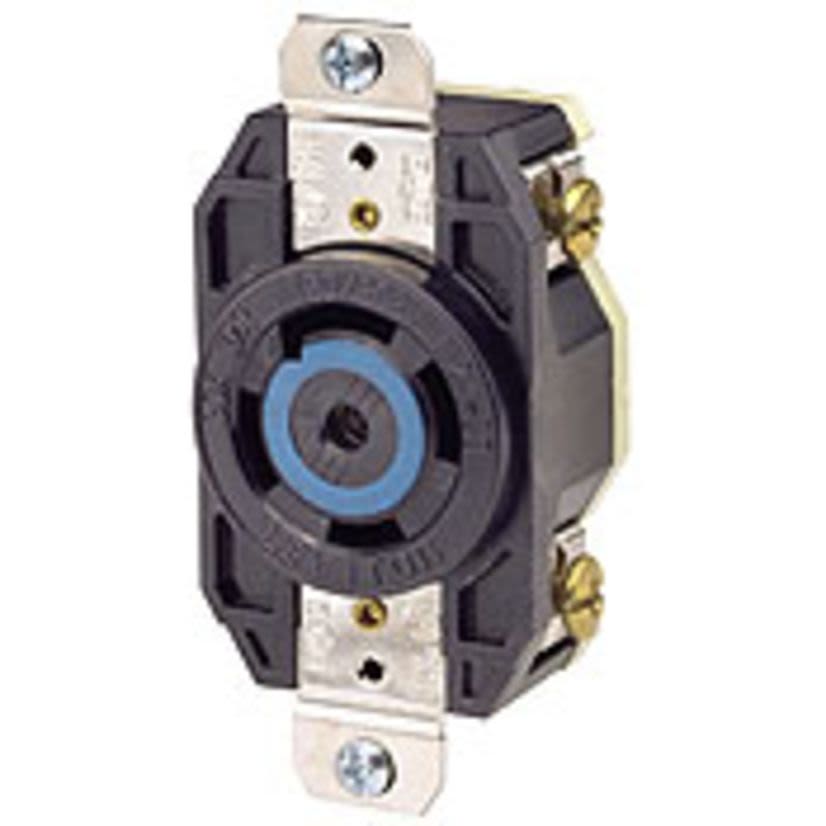

Leviton® V-0-Max™ 2810 3-Phase Y Grounding Locking Receptacle, 120/208 VAC, 30 A, 4 Poles, 5 Wires, Black
Leviton 2810
Leviton® V-0-Max™ 2810 3-Phase Y Grounding Locking Receptacle, 120/208 VAC, 30 A, 4 Poles, 5 Wires, BlackNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2810
Werner Part #2373261
UPC078477075784
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2810
Werner Part #2373261
UPC078477075784
Product Description
Leviton® V-0-Max™ Locking Receptacle, 3-Phase Y Grounding, 120/208 VAC, 30 A, 3 hp, 4 Poles, 5 Wires, NEMA L21-30R, Industrial Grade, -40 to 60 deg C, Back/Side Wired Terminal, Polybutylene Terephthalate, Black, 3.62 in H x 1.7 in W x 1.43 in D
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginMexico
Dimensions3.62 in H x 1.7 in W x 1.43 in D
GradeIndustrial
Horsepower3 hp
ManufacturerLeviton
MaterialPolybutylene Terephthalate
NEMA RatingNEMA L21-30R
Number of Poles4
Number of Wires5
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type3-Phase Y Grounding
Type / Style3-Phase Y Grounding
Voltage Rating120/208 VAC
Features
Box mounting14 to 8 AWG terminal accommodationFlush mount
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
