Leviton 2753

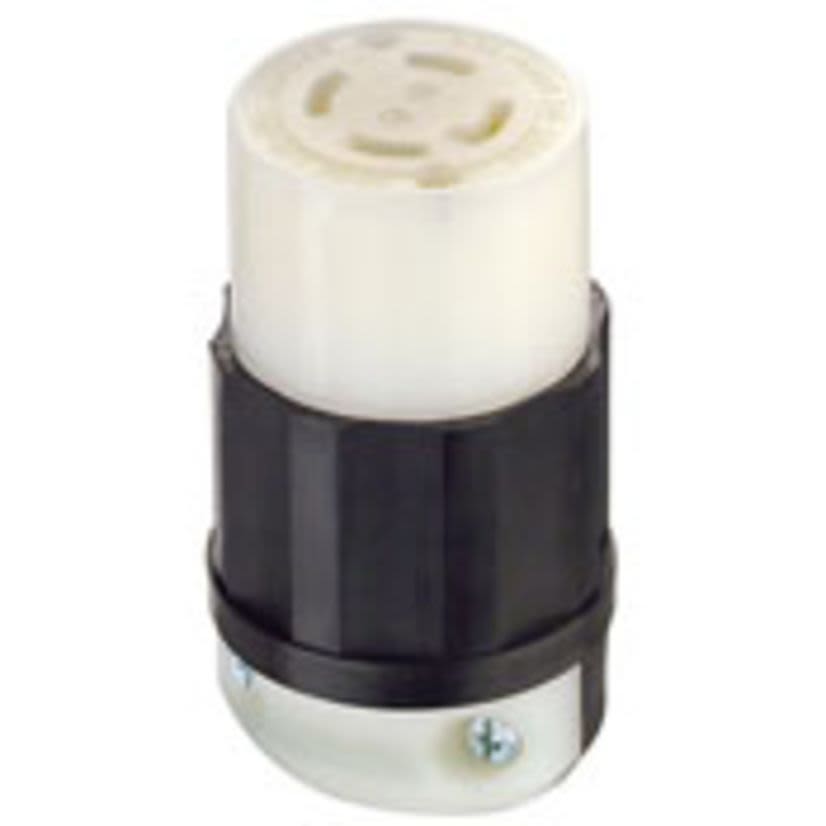

Leviton® Black & White® 2753 3-Phase Non-Grounding Cable Mount Locking Connector, 120/208 VAC, 30 A, 4 Poles, 4 Wires, Black/White
Leviton 2753
Leviton® Black & White® 2753 3-Phase Non-Grounding Cable Mount Locking Connector, 120/208 VAC, 30 A, 4 Poles, 4 Wires, Black/WhiteInventory Not Available
BrandLeviton
MFG #2753
Werner Part #45113
UPC078477808481
Inventory Not Available
BrandLeviton
MFG #2753
Werner Part #45113
UPC078477808481
Product Description
Leviton® Black & White® Locking Connector, 3-Phase Non-Grounding Cable Mount, 120/208 VAC, 30 A, 3-1/2 hp, 4 Poles, 4 Wires, NEMA L18-30R, Industrial Grade, 0.595 to 1.15 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 2.22 in Dia x 3.78 in L
Attributes
Documents
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions2.22 in Dia x 3.78 in L
GradeIndustrial
Horsepower3-1/2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA L18-30R
Number of Poles4
Number of Wires4
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
Type3-Phase Non-Grounding Cable Mount
Type / Style3-Phase Non-Grounding Cable Mount
Voltage Rating120/208 VAC
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
