Leviton 2736

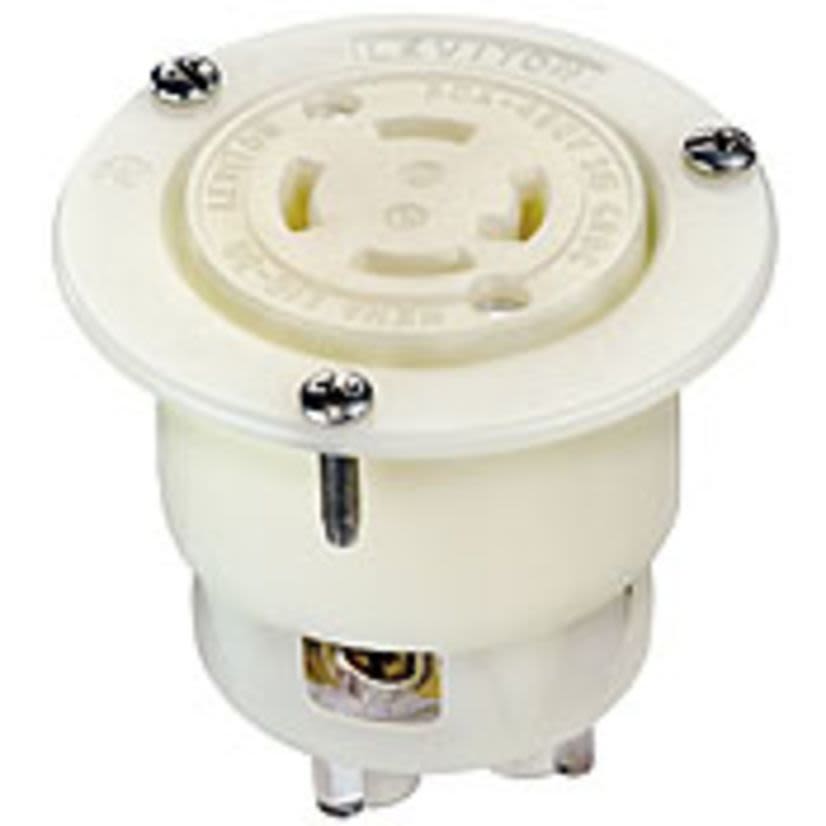

Leviton 2736 3-Phase Grounding Receptacle Locking Flanged Outlet, 480 V AC, 30 A, 3 Poles, 4 Wires, White
Leviton 2736
Leviton 2736 3-Phase Grounding Receptacle Locking Flanged Outlet, 480 V AC, 30 A, 3 Poles, 4 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2736
Werner Part #45107
UPC078477806470
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2736
Werner Part #45107
UPC078477806470
Product Description
Leviton, 2736, Locking Flanged Outlet, 3-Phase Grounding Receptacle, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, NEMA L16-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 33 in Dia Dimensions
Attributes
Documents
Applications
Features
Warranty
Specifications
Attributes
ColorWhite
Country of OriginMX
Dimensions33 in Dia
GradeIndustrial
Horsepower10 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA L16-30R
Number of Poles3
Number of Wires4
Temperature Rating-40 to 60 deg C
Terminal TypeBack Wire
Type3-Phase Grounding Receptacle
Type / Style3-Phase Grounding Receptacle
Voltage Rating480 V AC
Applications
Commercial Applications
Features
- 14 to 8 AWG terminal accommodation, grounding
- 2000 VAC minimum dielectric strength
- Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
- Nylon face material, solid brass line contacts
- #10-32 brass terminal screws
- #8-32 brass grounding screws
- Thermoplastic nylon strap
- Brass-hot, green ground, white-neutral terminal ID
- Ratings are permanently marked on device product ID
- Rugged nylon flange fits flush and wont crack in high abuse applications
- Individual deep-funneled chamfered wire wells guide each wire into rectangular chambers
- Wire clamps bundle stranded wire without cutting wire strands
Warranty
Lifetime
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13399/E13393|UL94 V-2 Flammability Rating
