Leviton 2723

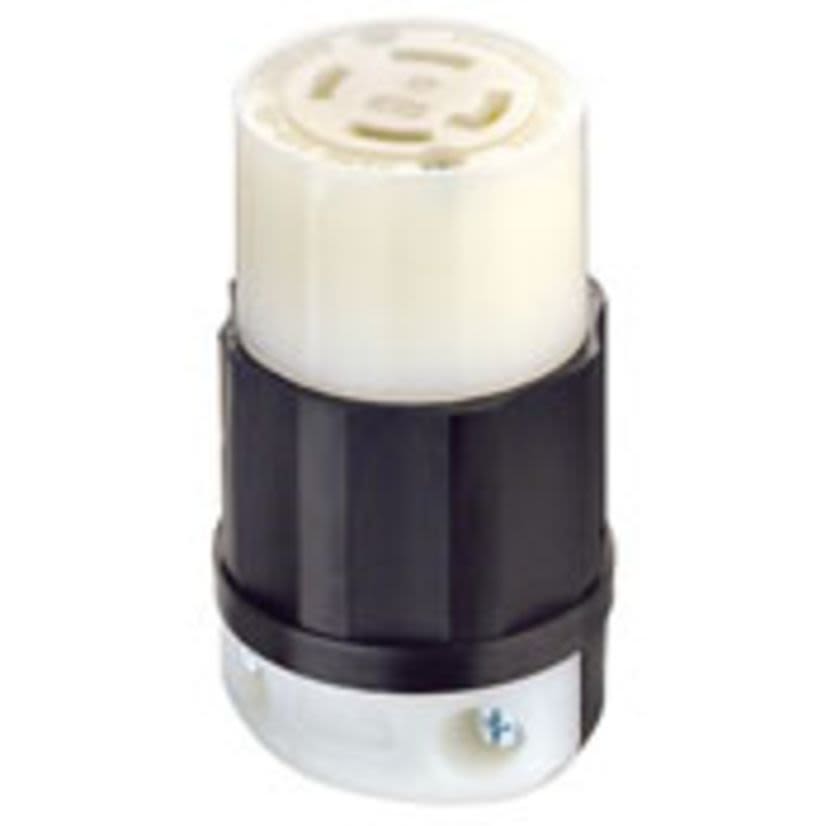

Leviton® Black & White® 2723 3-Phase Grounding Cable Mount Locking Connector, 250 VAC, 30 A, 3 Poles, 4 Wires, Black/White
Leviton 2723
Leviton® Black & White® 2723 3-Phase Grounding Cable Mount Locking Connector, 250 VAC, 30 A, 3 Poles, 4 Wires, Black/WhiteNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Leviton® Black & White® Locking Connector, 3-Phase Grounding Cable Mount, 250 VAC, 30 A, 3-1/2 hp, 3 Poles, 4 Wires, NEMA L15-30R, Industrial Grade, 0.595 to 1.15 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 2.22 in Dia x 3.78 in L
Attributes
Documents
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions2.22 in Dia x 3.78 in L
GradeIndustrial
Horsepower3-1/2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA L15-30R
Number of Poles3
Number of Wires4
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
Type3-Phase Grounding Cable Mount
Type / Style3-Phase Grounding Cable Mount
Voltage Rating250 VAC
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
