Leviton 2720

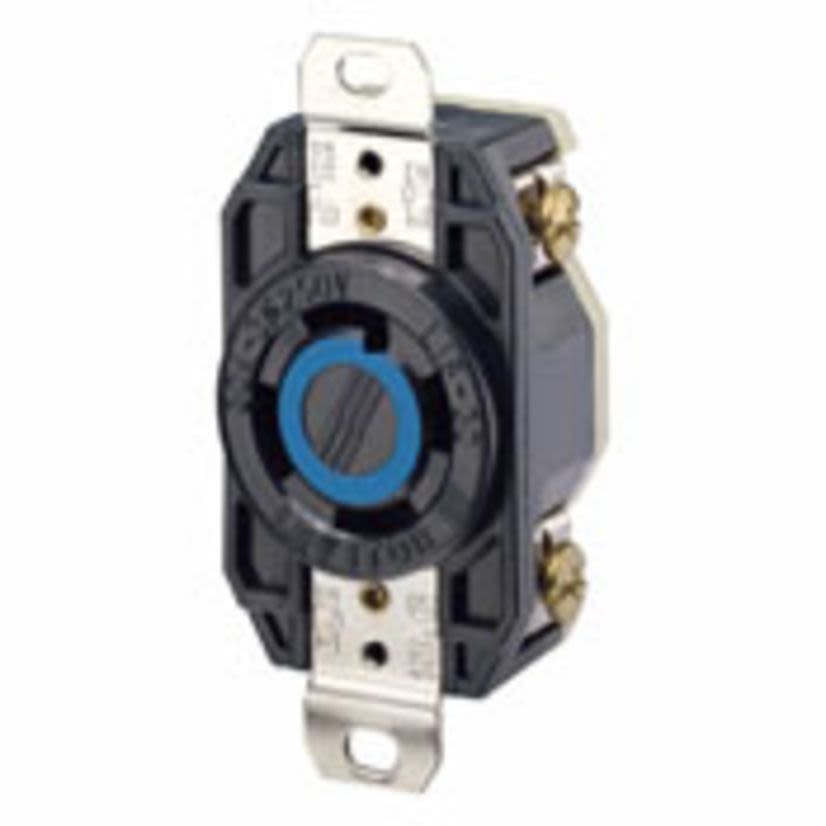

Leviton® V-0-Max™ 2720 3-Phase Grounding Locking Receptacle, 250 VAC, 30 A, 3 Poles, 4 Wires, Black
Leviton 2720
Leviton® V-0-Max™ 2720 3-Phase Grounding Locking Receptacle, 250 VAC, 30 A, 3 Poles, 4 Wires, BlackIn Stock: 8more info
|
BrandLeviton
MFG #2720
Werner Part #45101
UPC078477809631
In Stock: 8more info
|
BrandLeviton
MFG #2720
Werner Part #45101
UPC078477809631
Product Description
Leviton® V-0-Max™ Locking Receptacle, 3-Phase Grounding, 250 VAC, 30 A, 3 hp, 3 Poles, 4 Wires, NEMA L15-30R, Industrial Grade, -40 to 60 deg C, Back/Side Wired Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginMexico
Dimensions3.63 in H x 1.69 in W x 1.31 in D
GradeIndustrial
Horsepower3 hp
ManufacturerLeviton
MaterialPolybutylene Terephthalate
NEMA RatingNEMA L15-30R
Number of Poles3
Number of Wires4
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type3-Phase Grounding
Type / Style3-Phase Grounding
Voltage Rating250 VAC
Features
Box mounting14 to 8 AWG terminal accommodationFlush mount
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
