Leviton 2646

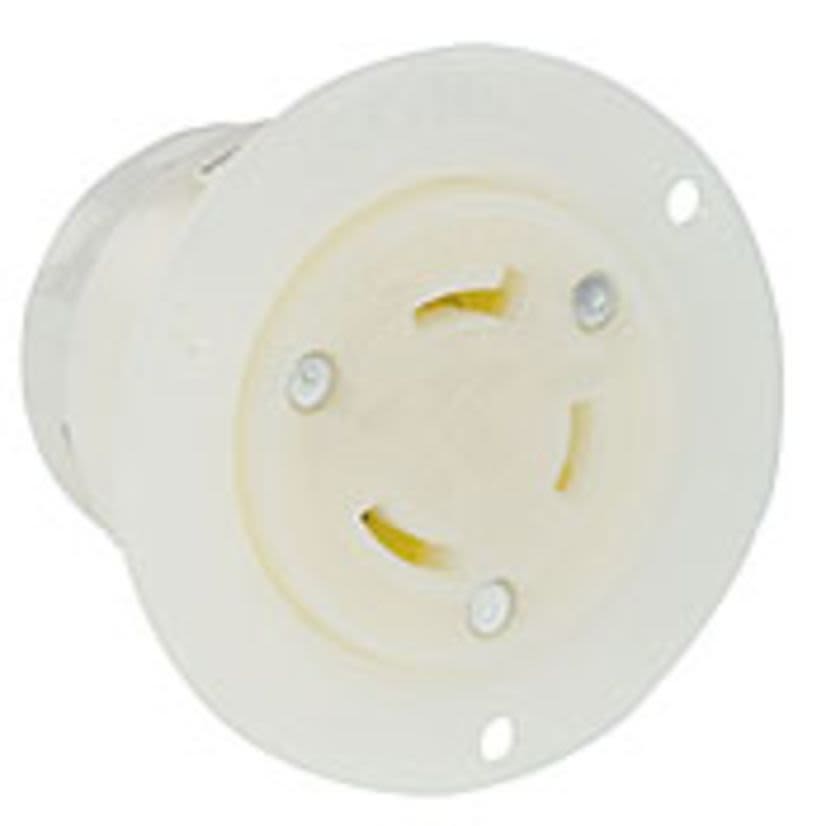

Leviton 2646 Grounding Receptacle Locking Flanged Outlet, 480 V AC, 30 A, 2 Poles, 3 Wires, White
Leviton 2646
Leviton 2646 Grounding Receptacle Locking Flanged Outlet, 480 V AC, 30 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2646
Werner Part #1316505
UPC078477806203
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2646
Werner Part #1316505
UPC078477806203
Product Description
Leviton, 2646, Locking Flanged Outlet, Grounding Receptacle, 480 V AC, 30 A, 5 hp, 2 Pole, 3 Wires, NEMA L8-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 2.88 in Dia x 2.11 in H Dimensions
Attributes
Documents
Applications
Features
Warranty
Specifications
Attributes
ColorWhite
Country of OriginMX
Dimensions2.88 in Dia x 2.11 in H
GradeIndustrial
Horsepower5 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA L8-30R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack Wire
TypeGrounding Receptacle
Type / StyleGrounding Receptacle
Voltage Rating480 V AC
Applications
Commercial Applications
Features
- 14 to 8 AWG terminal accommodation, grounding
- Individual deep-funneled chamfered wire wells guide each wire into rectangular chambers
- Wire clamps bundle stranded wire without cutting wire strands
- 2000 VAC minimum dielectric strength
- Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
- Nylon face material, brass 0.035 in THK line contacts
- #10-32 brass terminal screws
- #8-32 brass grounding screws
- Thermoplastic nylon strap
- Brass-hot, green ground, white-neutral terminal ID
- Ratings are permanently marked on device product ID
Warranty
Lifetime
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13399|UL94 V-2 Flammability Rating
