Leviton 2630

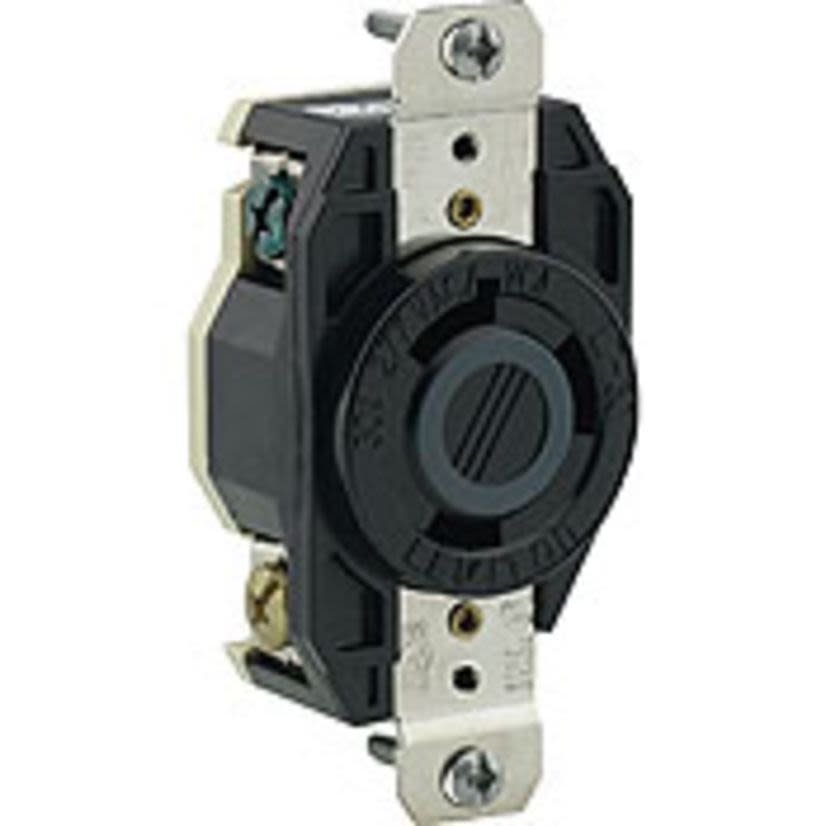

Leviton® V-0-Max™ 2630 Grounding Locking Receptacle, 277 VAC, 30 A, 2 Poles, 3 Wires, Black
Leviton 2630
Leviton® V-0-Max™ 2630 Grounding Locking Receptacle, 277 VAC, 30 A, 2 Poles, 3 Wires, BlackNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2630
Werner Part #45073
UPC078477045473
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2630
Werner Part #45073
UPC078477045473
Product Description
Leviton® V-0-Max™ Locking Receptacle, Grounding, 277 VAC, 30 A, 3 hp, 2 Poles, 3 Wires, NEMA L7-30R, Industrial Grade, -40 to 60 deg C, Back/Side Wired Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginMexico
Dimensions3.63 in H x 1.69 in W x 1.31 in D
GradeIndustrial
Horsepower3 hp
ManufacturerLeviton
MaterialPolybutylene Terephthalate
NEMA RatingNEMA L7-30R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeGrounding
Type / StyleGrounding
Voltage Rating277 VAC
Features
Box mounting14 to 8 AWG terminal accommodationFlush mount
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
