Leviton 24W47

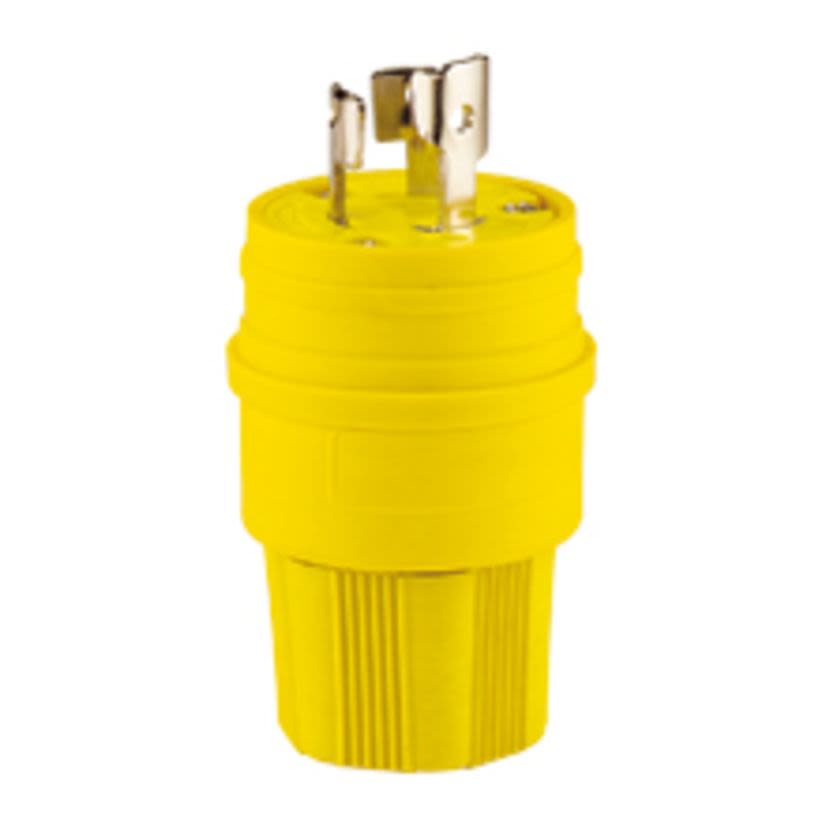

Leviton® Wetguard® 24W47 1-Phase Grounding Watertight Cable Mount Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Leviton 24W47
Leviton® Wetguard® 24W47 1-Phase Grounding Watertight Cable Mount Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, YellowNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Leviton® Wetguard® Locking Plug, 1-Phase Grounding Watertight Cable Mount, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA L5-15P, Industrial Grade, IP67 Enclosure, 0.234 to 0.687 in Cord Dia, -40 to 60 deg C, Screw Terminal, TPV, Yellow, 1.5 in Dia x 2.71 in L
Attributes
Documents
Specifications
Attributes
ColorYellow
Country of OriginUnited States
Dimensions1.5 in Dia x 2.71 in L
Enclosure TypeIP67
GradeIndustrial
Horsepower1/2 hp
ManufacturerLeviton
MaterialTPV
NEMA RatingNEMA L5-15P
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
Type1-Phase Grounding Watertight Cable Mount
Type / Style1-Phase Grounding Watertight Cable Mount
Voltage Rating125 VAC
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498|UL94 V-2 Flammability Rating
