Leviton 2450

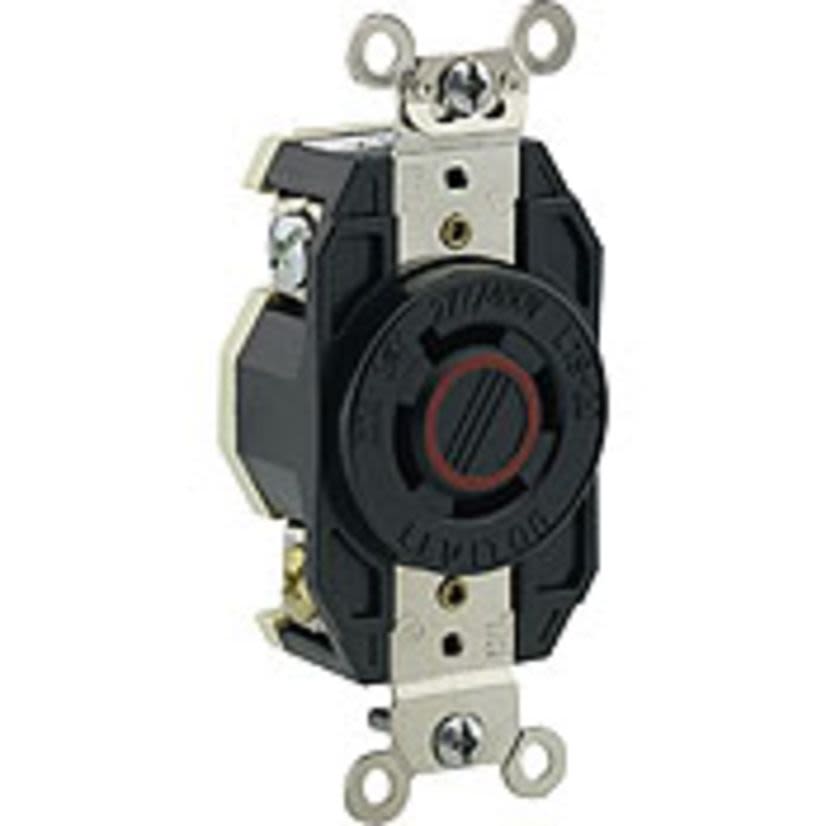

Leviton® V-0-Max™ 2450 3-Phase Y Non-Grounding Locking Receptacle, 277/480 VAC, 20 A, 4 Poles, 4 Wires, Black
Leviton 2450
Leviton® V-0-Max™ 2450 3-Phase Y Non-Grounding Locking Receptacle, 277/480 VAC, 20 A, 4 Poles, 4 Wires, BlackNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2450
Werner Part #45054
UPC078477045442
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2450
Werner Part #45054
UPC078477045442
Product Description
Leviton® V-0-Max™ Locking Receptacle, 3-Phase Y Non-Grounding, 277/480 VAC, 20 A, 5 hp, 4 Poles, 4 Wires, NEMA L19-20R, Industrial Grade, -40 to 60 deg C, Back/Side Wired Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginMexico
Dimensions3.63 in H x 1.69 in W x 1.31 in D
GradeIndustrial
Horsepower5 hp
ManufacturerLeviton
MaterialPolybutylene Terephthalate
NEMA RatingNEMA L19-20R
Number of Poles4
Number of Wires4
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type3-Phase Y Non-Grounding
Type / Style3-Phase Y Non-Grounding
Voltage Rating277/480 VAC
Features
Box mounting14 to 8 AWG terminal accommodationFlush mount
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
