Leviton 2443

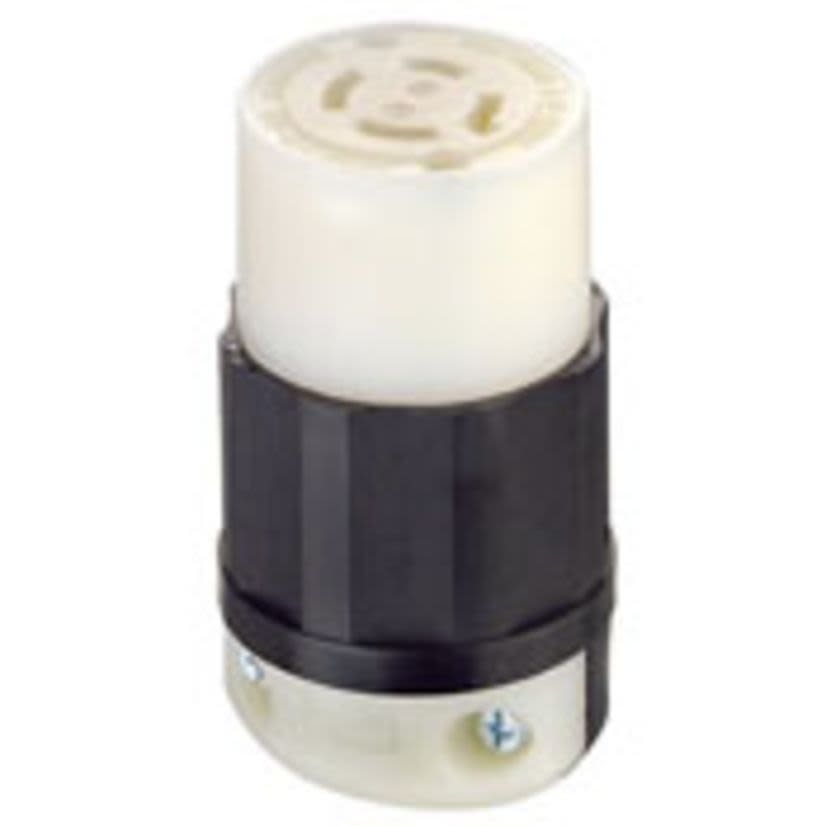

Leviton® V-0-Max™ 2443 3-Phase Non-Grounding Cable Mount Locking Connector, 120/208 VAC, 20 A, 4 Poles, 4 Wires, Black/White
Leviton 2443
Leviton® V-0-Max™ 2443 3-Phase Non-Grounding Cable Mount Locking Connector, 120/208 VAC, 20 A, 4 Poles, 4 Wires, Black/WhiteNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2443
Werner Part #45053
UPC078477808320
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2443
Werner Part #45053
UPC078477808320
Product Description
Leviton® V-0-Max™ Locking Connector, 3-Phase Non-Grounding Cable Mount, 120/208 VAC, 20 A, 2 hp, 4 Poles, 4 Wires, NEMA L18-20R, Industrial Grade, 0.595 to 0.895 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 28 in Dia x 3.53 in H
Attributes
Documents
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions28 in Dia x 3.53 in H
GradeIndustrial
Horsepower2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA L18-20R
Number of Poles4
Number of Wires4
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
Type3-Phase Non-Grounding Cable Mount
Type / Style3-Phase Non-Grounding Cable Mount
Voltage Rating120/208 VAC
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
