Leviton 1451-ICP

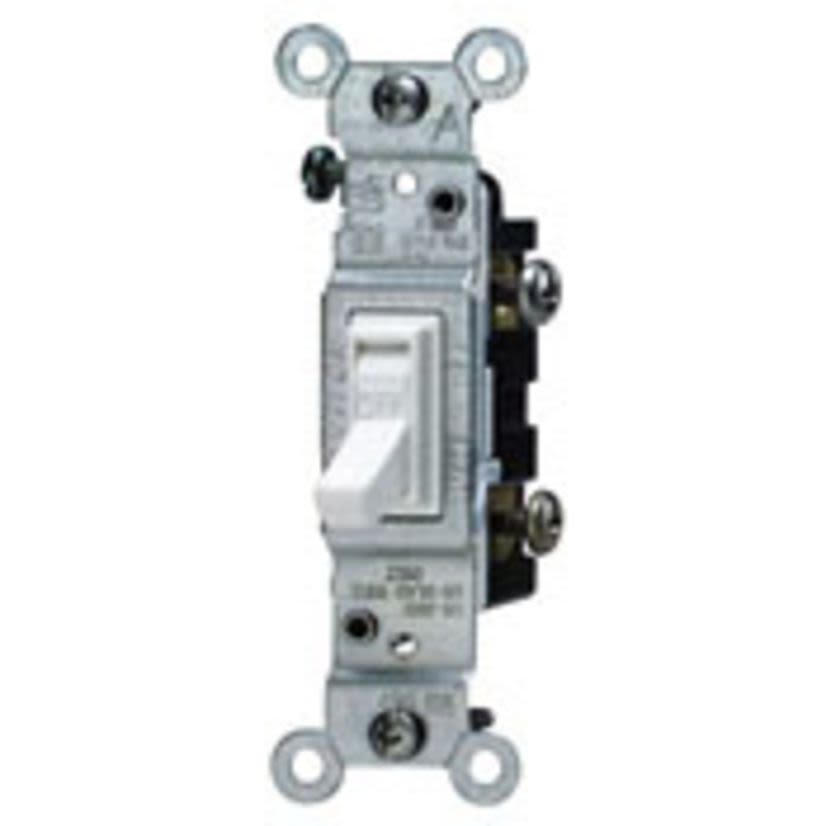

LevitonĀ® 1451-ICP Non-Grounding AC Quiet Toggle Switch, 120 VAC, 15 A, 1/2, 2 hp Power Rating, SP Contact
Leviton 1451-ICP
LevitonĀ® 1451-ICP Non-Grounding AC Quiet Toggle Switch, 120 VAC, 15 A, 1/2, 2 hp Power Rating, SP ContactNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #1451-ICP
Werner Part #1316113
UPC078477151211
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #1451-ICP
Werner Part #1316113
UPC078477151211
Product Description
LevitonĀ® AC Quiet Toggle Switch, Non-Grounding, 120 VAC, 15 A, 1/2, 2 hp Power, SP Contact Configuration, 1 Pole, Cam Actuator, Surface Mounting, Push-In/Side Wired Terminal, Thermoplastic, Ivory, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.2 in H x 1.31 in W x 11 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeCam
ColorIvory
Country of OriginUnited States
Dimensions4.2 in H x 1.31 in W x 11 in D
Electrical Ratings1/2, 2 hp
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeSide and Push-In Wired
TypeNon-Grounding
Type / StyleNon-Grounding
Voltage Rating120 VAC
Features
Faster installation with combination of side wiring and quick wire push-in wiringLarge head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installationImpact resistant, durable thermoplastic toggle and frameQuick wire push-in terminals accept no 14 AWG solid copper wire onlyTerminal screws accept up to #12 AWG copper or copper clad wireDurable thermoplastic toggle and frame1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E7458|UL94 V-2 Flammability Rating|CSA File No. LR3413|NOM 057
