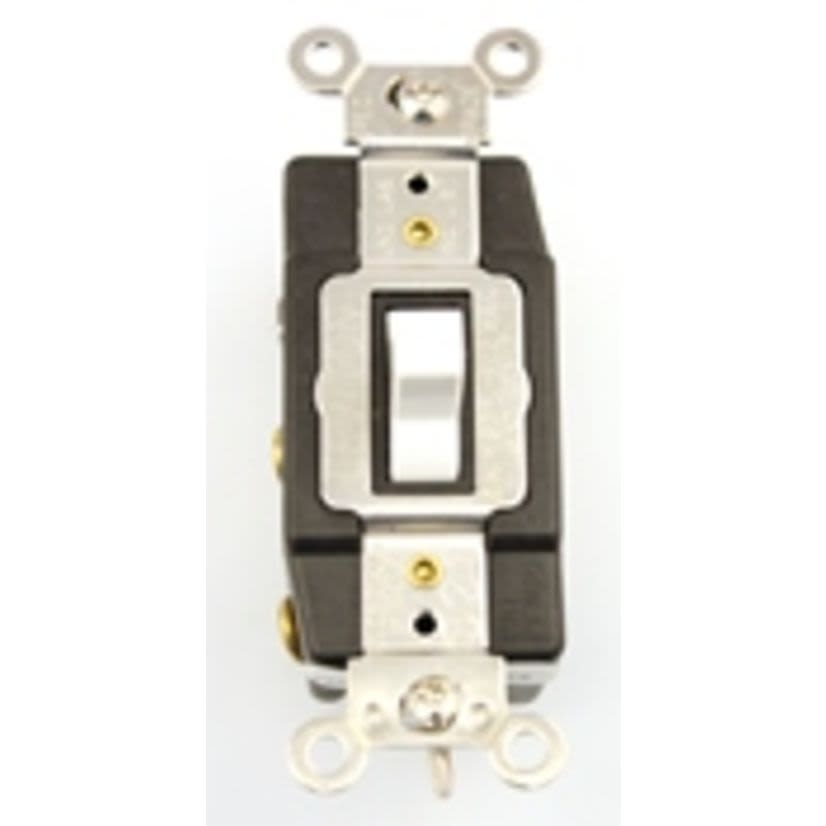

Leviton 1282
LevitonĀ® 1282 Center OFF Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating, SPDT Contact
Leviton 1282
LevitonĀ® 1282 Center OFF Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating, SPDT ContactNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #1282
Werner Part #1307064
UPC078477168141
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #1282
Werner Part #1307064
UPC078477168141
Product Description
LevitonĀ® AC Quiet Toggle Switch, Center OFF Grounding, 120/277 VAC, 15 A, 1/2, 2 hp Power, SPDT Contact Configuration, 2 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wired Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Brown, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.37 in W x 2.29 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeToggle
ColorBrown
Country of OriginMexico
Dimensions46 in H x 1.37 in W x 2.29 in D
Electrical Ratings1/2, 2 hp
Enclosure TypeNEMA WD-1/WD-6
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles2
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeBack/Side Wire
TypeCenter OFF Grounding
Type / StyleCenter OFF Grounding
Voltage Rating120/277 VAC
Documents
Features
Positive switching action with center OFF positionLarge silver cadmium oxide contacts for long life prevent sticking, welding and excessive pittingClamp type terminals accept up to 10 AWG copper wireFull rated current capacity on fluorescent, tungsten and resistive loads, motor load capacity up to 80% switch current rating1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
