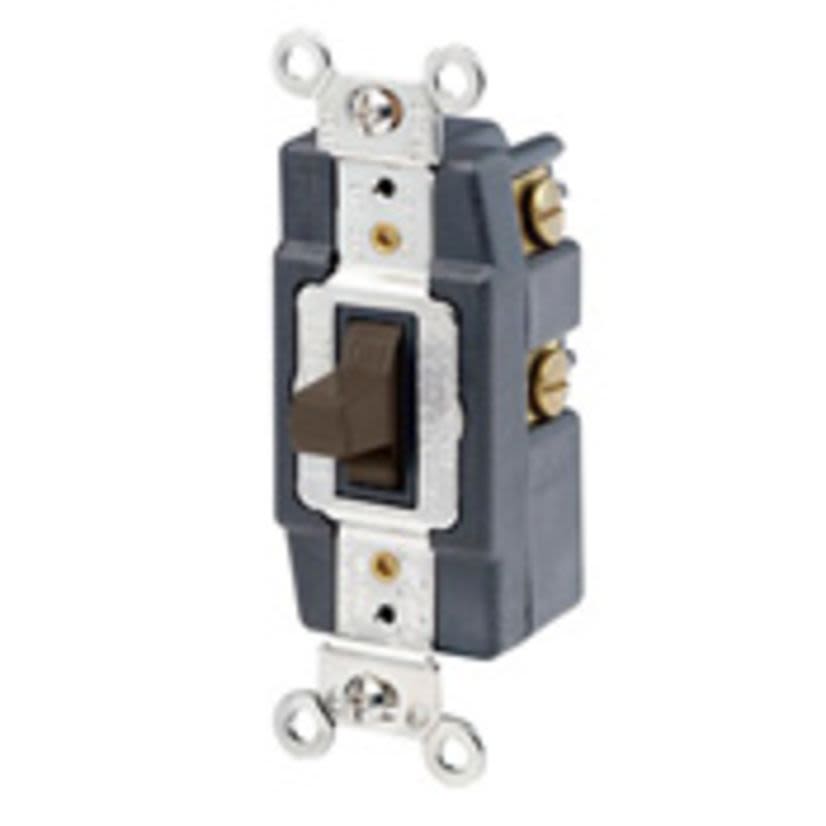

Leviton 1257-R
Leviton 1257-R AC Quiet Toggle Switch, 120/277 V AC, 20 A, 800 W, 1000 VA Power Rating, SPDT Contact
Leviton 1257-R
Leviton 1257-R AC Quiet Toggle Switch, 120/277 V AC, 20 A, 800 W, 1000 VA Power Rating, SPDT ContactNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #1257-R
Werner Part #4096233
UPC078477456798
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #1257-R
Werner Part #4096233
UPC078477456798
Product Description
Leviton AC Quiet Toggle Switch, 120/277 V AC, 20 A, 800 W, 1000 VA Power, SPDT Contact Configuration, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Red, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.37 in W x 2.29 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Actuator TypeToggle
ColorRed
Country of OriginMX
Dimensions46 in H x 1.37 in W x 2.29 in D
Electrical Ratings800 W, 1000 VA
Enclosure TypeNEMA WD-1/WD-6
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeBack/Side Wire
Voltage Rating120/277 V AC
Documents
Applications
Commercial Applications
Features
- Positive switching action with center OFF position
- Large silver cadmium oxide contacts for long life prevent sticking, welding and excessive pitting
- Clamp type terminals accept up to 10 AWG copper wire
- Full rated current capacity on fluorescent, tungsten and resistive loads motor load capacity up to 80% switch current rating
- 1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
