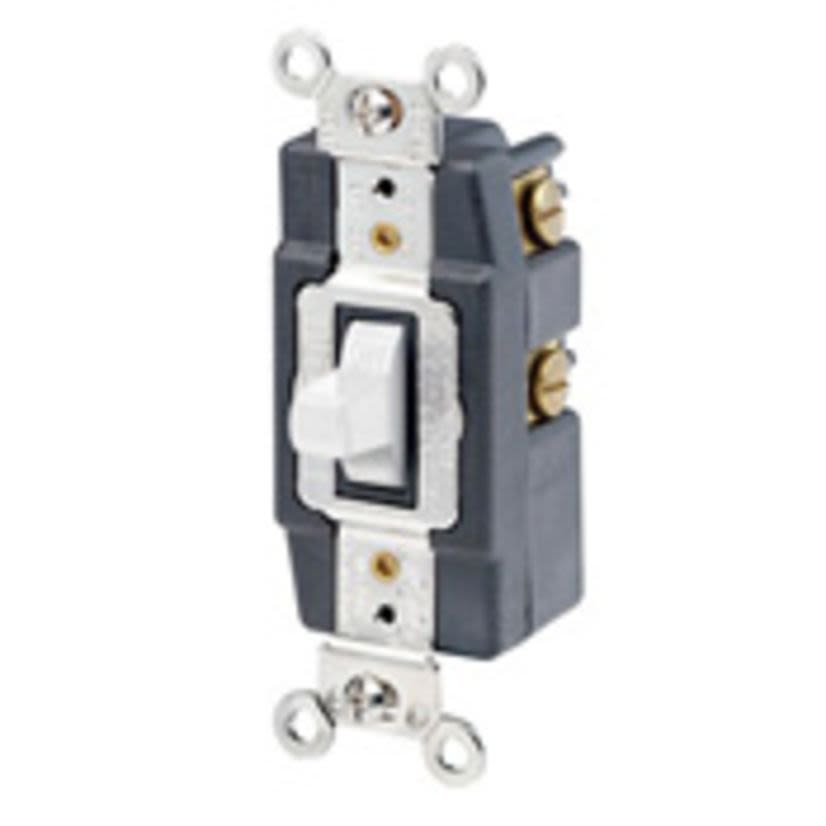

Leviton 1256-I
LevitonĀ® 1256-I AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating, SPDT Contact
Leviton 1256-I
LevitonĀ® 1256-I AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating, SPDT ContactOut of Stockmore info
|
BrandLeviton
MFG #1256-I
Werner Part #44925
UPC078477165652
Out of Stockmore info
|
BrandLeviton
MFG #1256-I
Werner Part #44925
UPC078477165652
Product Description
LevitonĀ® AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power, SPDT Contact Configuration, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wired Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Ivory, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.37 in W x 2.29 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeToggle
ColorIvory
Country of OriginMexico
Dimensions46 in H x 1.37 in W x 2.29 in D
Electrical Ratings1/2, 2 hp
Enclosure TypeNEMA WD-1/WD-6
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeBack/Side Wire
TypeExtra Heavy Duty
Type / StyleToggle Switch
Voltage Rating120/277 VAC
Documents
Features
Positive switching action with center OFF positionLarge silver cadmium oxide contacts for long life prevent sticking, welding and excessive pittingClamp type terminals accept up to 10 AWG copper wireFull rated current capacity on fluorescent, tungsten and resistive loads, motor load capacity up to 80% switch current rating1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
