Leviton 1224-SW

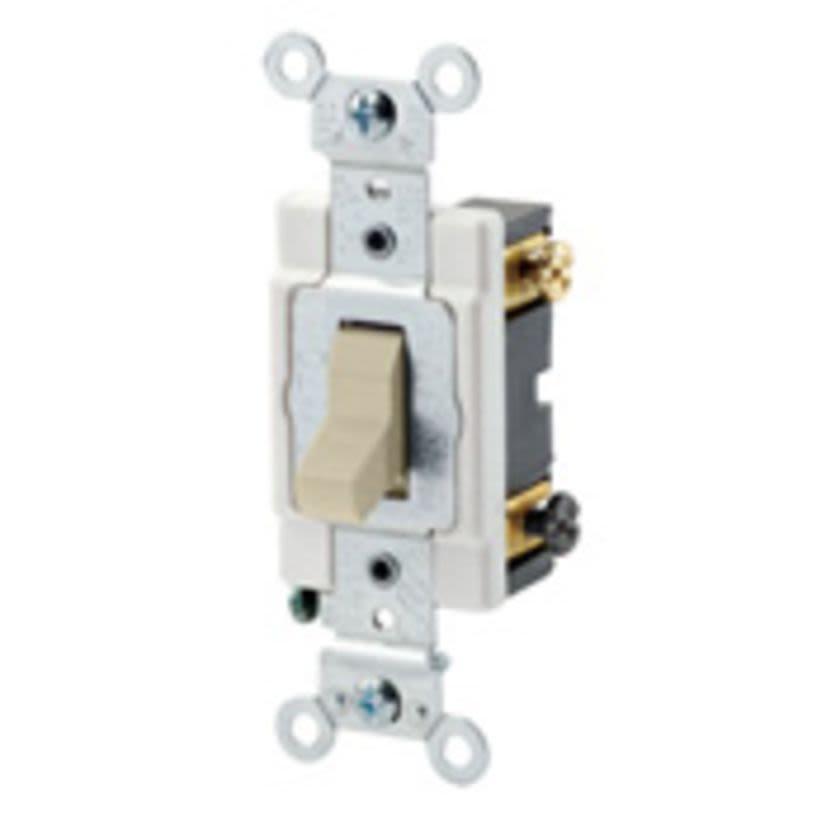

LevitonĀ® 1224-SW 4-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 1/2, 2 hp Power Rating
Leviton 1224-SW
LevitonĀ® 1224-SW 4-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 1/2, 2 hp Power RatingIn Stock: 32more info
|
BrandLeviton
MFG #1224-SW
Werner Part #1309720
UPC078477096024
In Stock: 32more info
|
BrandLeviton
MFG #1224-SW
Werner Part #1309720
UPC078477096024
Product Description
LevitonĀ® AC Quiet Toggle Switch, 4-Way Grounding, 120/277 VAC, 20 A, 1/2, 2 hp Power, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wired Terminal, Thermoplastic, White, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeToggle
ColorWhite
Country of OriginMexico
Dimensions46 in H x 1.31 in W x 13 in D
Electrical Ratings1/2, 2 hp
Enclosure TypeNEMA WD-1/WD-6
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles2
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeBack/Side Wire
Type4-Way Grounding
Type / Style4-Way Grounding
Voltage Rating120/277 VAC
Documents
Features
Heavy gauge copper alloy brush arm for superior performanceLarge silver alloy contacts for long life prevent sticking, welding and excessive pittingFully enclosed switch mechanism in rugged housing for strength, tracking and arc resistanceSelf-grounding clip (self grounding when used with a grounded metal wallbox)1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
