Leviton 1223-SGY

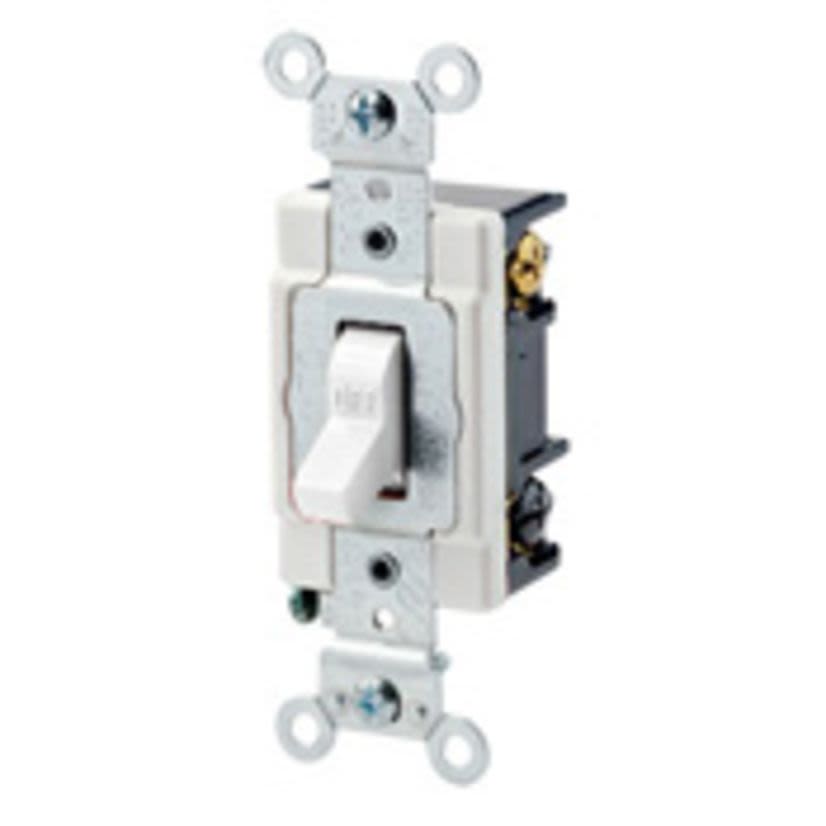

LevitonĀ® 1223-SGY 3-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VA
Leviton 1223-SGY
LevitonĀ® 1223-SGY 3-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 20 A, 800 W, 1000 VANon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
LevitonĀ®AC Quiet Toggle Switch, 3-Way Grounding, 120/277 VAC, 20 A, 800 W, 1000 VA, Toggle, NEMA WD-1/WD-6 Enclosure, Surface, Back/Side Wired Terminal, Thermoplastic, Gray, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeToggle
ColorGray
Country of OriginUnited States
Dimensions46 in H x 1.31 in W x 13 in D
Electrical Ratings800 W, 1000 VA
Enclosure TypeNEMA WD-1/WD-6
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeBack/Side Wire
Type3-Way Grounding
Type / Style3-Way Grounding
Voltage Rating120/277 VAC
Documents
Features
Heavy gauge copper alloy brush arm for superior performanceLarge silver alloy contacts for long life prevent sticking, welding and excessive pittingFully enclosed switch mechanism in rugged housing for strength, tracking and arc resistanceSelf-grounding clip (self grounding when used with a grounded metal wallbox)1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
