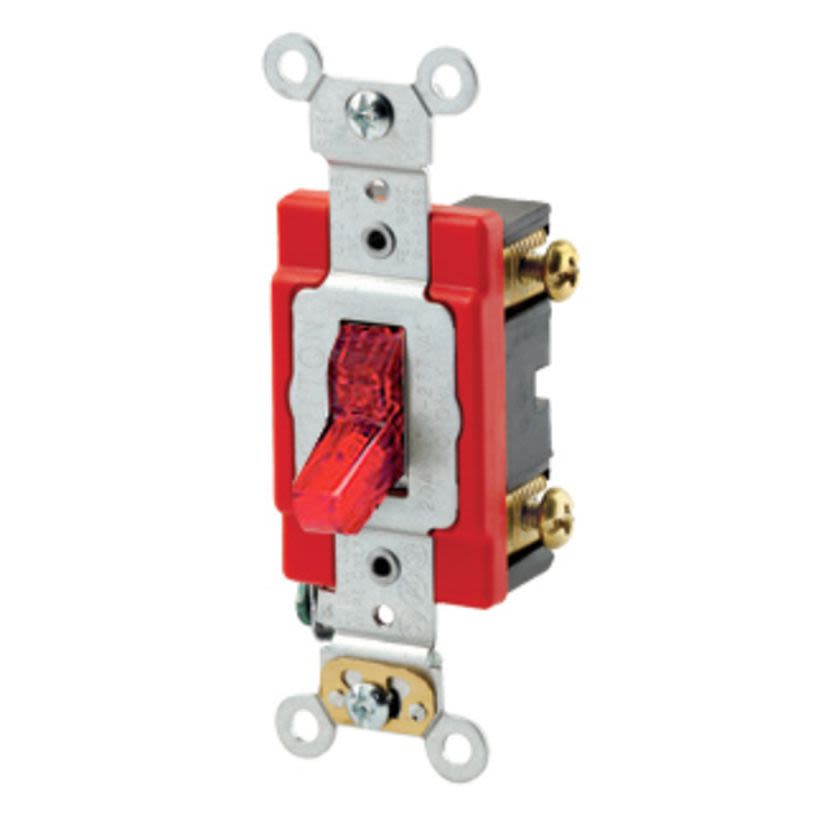

Leviton 1221-7PR
LevitonĀ® 1221-7PR Self-Grounding AC Quiet Toggle Switch, 277 VAC, 20 A, 2 hp Power Rating, SP Contact
Leviton 1221-7PR
LevitonĀ® 1221-7PR Self-Grounding AC Quiet Toggle Switch, 277 VAC, 20 A, 2 hp Power Rating, SP ContactNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
LevitonĀ® AC Quiet Toggle Switch, Self-Grounding, 277 VAC, 20 A, 2 hp Power, SP Contact Configuration, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wired Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Red, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 1.6 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeToggle
ColorRed
Country of OriginMexico
Dimensions46 in H x 1.31 in W x 1.6 in D
Electrical Ratings2 hp
Enclosure TypeNEMA WD-1/WD-6
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeBack/Side Wire
TypeSelf-Grounding
Type / StyleSelf-Grounding
Voltage Rating277 VAC
Documents
Features
Pilot light and lighted handle switches provide top performance in punishing industrial applicationsLighted handle illuminated when load is OFFPilot light toggle illuminated when load is ONFully enclosed switch mechanism in rugged housing for strength, tracking and arc resistanceSelf-grounding clip (self grounding when used with a grounded metal wallbox)2 hp at 277 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
