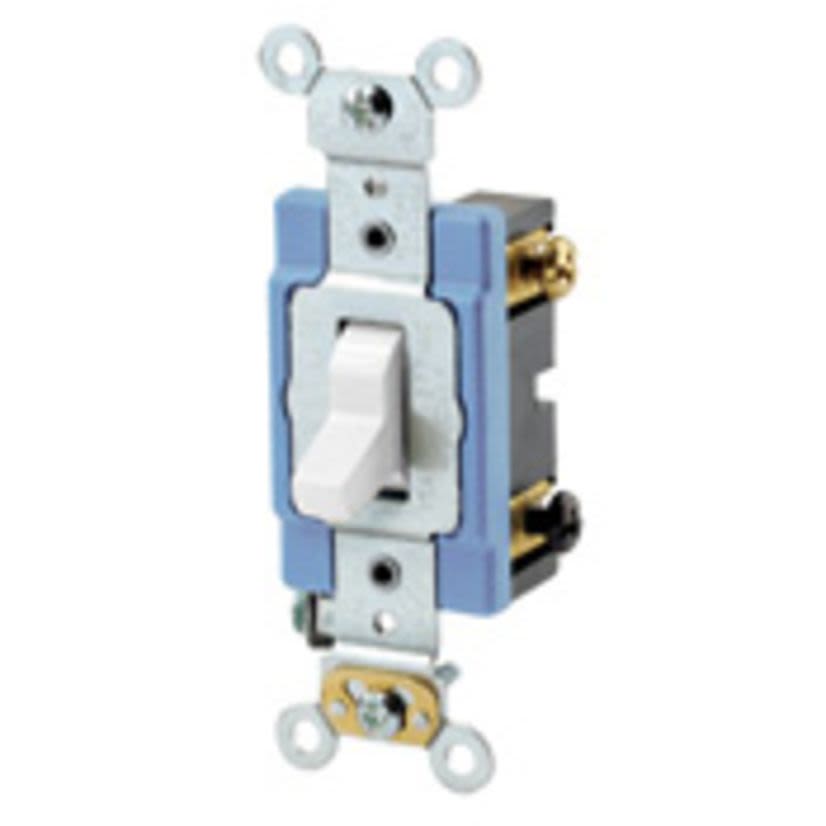

Leviton 1203-2W
LevitonĀ® 1203-2W 3-Way Self-Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating
Leviton 1203-2W
LevitonĀ® 1203-2W 3-Way Self-Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power RatingNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #1203-2W
Werner Part #2013705
UPC078477224861
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #1203-2W
Werner Part #2013705
UPC078477224861
Product Description
LevitonĀ® AC Quiet Toggle Switch, 3-Way Self-Grounding, 120/277 VAC, 15 A, 1/2, 2 hp Power, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wired Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeToggle
ColorWhite
Country of OriginMexico
Dimensions46 in H x 1.31 in W x 13 in D
Electrical Ratings1/2, 2 hp
Enclosure TypeNEMA WD-1/WD-6
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeBack/Side Wire
Type3-Way Self-Grounding
Type / Style3-Way Self-Grounding
Voltage Rating120/277 VAC
Features
Heavy gauge copper alloy brush arm for superior performanceLarge silver alloy contacts for long life prevent sticking, welding and excessive pittingFully enclosed switch mechanism in rugged housing for strength, tracking and arc resistanceSelf-grounding clip (self grounding when used with a grounded metal wallbox)1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
