WattStopper WS-301-I

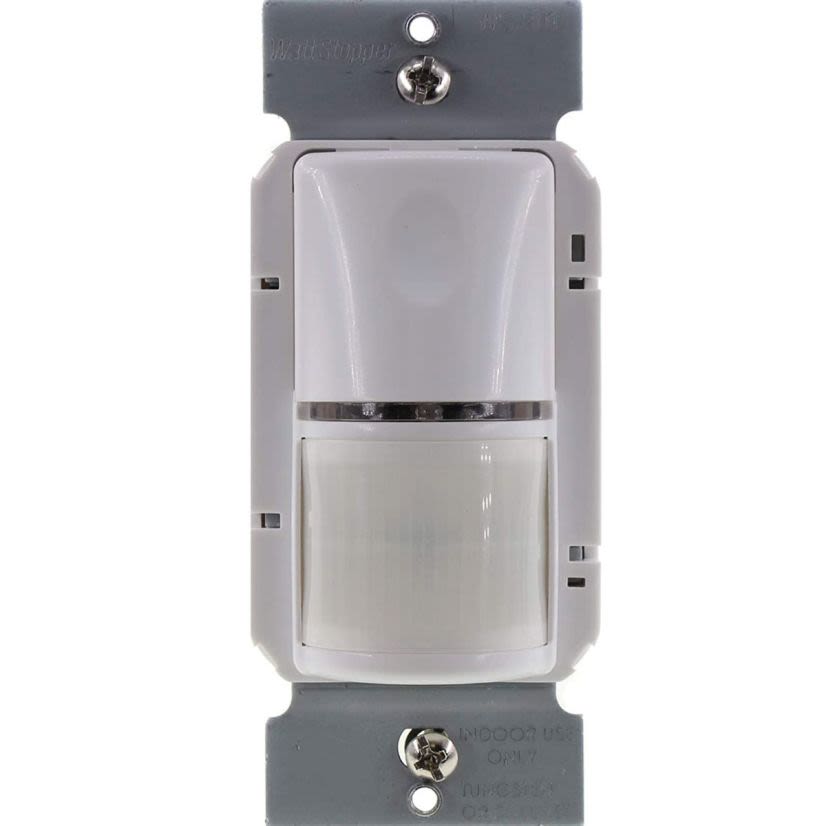

Legrand WattStopper® WS-301-I Commercial Wall Switch Occupancy Sensor, 120/277 VAC, Passive Infrared Sensor, 900 sq-ft Coverage, 180 deg Viewing, Surface Mount
WattStopper WS-301-I
Legrand WattStopper® WS-301-I Commercial Wall Switch Occupancy Sensor, 120/277 VAC, Passive Infrared Sensor, 900 sq-ft Coverage, 180 deg Viewing, Surface MountNon-stock product. Available to order - lead time may vary.
BrandWattStopper
MFG #WS-301-I
Werner Part #4034382
UPC754182935352
Non-stock product. Available to order - lead time may vary.
BrandWattStopper
MFG #WS-301-I
Werner Part #4034382
UPC754182935352
Product Description
WattStopper® Wall Switch Occupancy Sensor, Commercial, Series: WS Series, 120/277 VAC, 0 to 1200 W, 1/6 hp, Passive Infrared Sensor, 900 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Delay, LED/Tungsten Lamp, Flying Lead, Automatic On/Off, Manual On/Off Control Output, Surface Mount, 35 deg C, Plastic, Ivory, 2.68 in L x 1.75 in W x 1.04 in H
Attributes
Features
Attributes
ColorIvory
Connection TypeFlying Lead
Control OutputAutomatic On/Off, Manual On/Off
Country of OriginChina
Coverage900 sq-ft
Dimensions2.68 in L x 1.75 in W x 1.04 in H
Lamp TypeLED/Tungsten
ManufacturerLegrand
MaterialPlastic
Mounting TypeStrap
Power Rating0 to 1200 W, 1/6 hp
Sensor TypePassive Infrared
SeriesWS Series
Temperature Rating35 deg C
Time Delay30 s to 30 min
Type / StyleCommercial
Viewing Angle180 deg
Voltage Rating120/277 VAC
Features
Time delay adjustment from 30 s up to 30 minMinimum to maximum sensitivity adjustment0 to 1000 VA tungsten, ballast, E-ballast, LED driver, 1/4 hp motor load requirement for each relay at 120 VAC, 0 to 1200 VA ballast, E-ballast and LED, 1/4 hp motor load requirement for each relay at 277 VACComplies with 2011 NEC requirementsZero crossing circuitry reduces stress on the relay and results in increased sensor lifeAdjustable time delay and sensitivityCustom 2-tier fresnel lens enhances detection at the desktop levelSensor coverage tested to NEMA guide publication WD 7-2000Light level sensor holds lights off when ambient lighting is above the preset levelPatented voltage drop protectionFor safety, there is no leakage to load in the OFF mode and sensor is safety groundedLED indicates occupancy detectionBallast E-ballast load typeTurns lighting or fan loads on and off based on occupancy and ambient light levelThe sensor replaces existing wall switches and fits behind a standard decorator wallplateOptional neutral
