WattStopper DSW-301-I

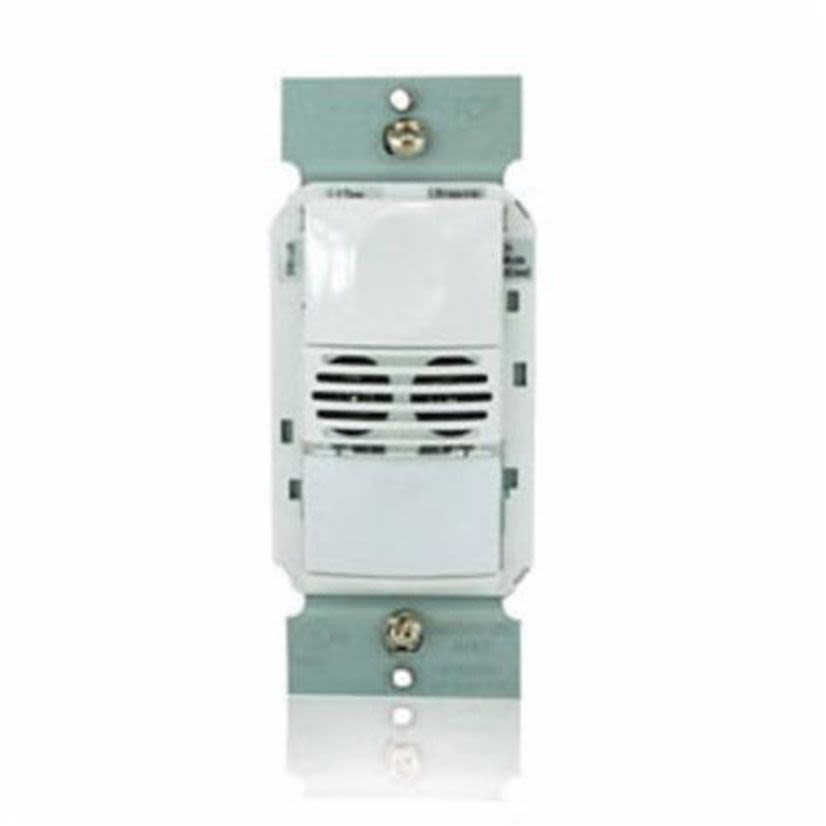

Legrand WattStopper® DSW-301-I Dual Technology Dual Relay Wall Switch Occupancy Sensor, 120/277 VAC, Passive Infrared/Ultrasonic Sensor, 1050 sq-ft Coverage, 180 deg Viewing, Surface Mount
WattStopper DSW-301-I
Legrand WattStopper® DSW-301-I Dual Technology Dual Relay Wall Switch Occupancy Sensor, 120/277 VAC, Passive Infrared/Ultrasonic Sensor, 1050 sq-ft Coverage, 180 deg Viewing, Surface MountNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
WattStopper® Wall Switch Occupancy Sensor, Dual Technology Dual Relay, Series: DSW, 120/277 VAC, 0 to 1200 W, 1/6 hp, Passive Infrared/Ultrasonic Sensor, 1050 sq-ft Coverage, 180 deg Viewing, 5 to 30 min Delay, LED Lamp, Flying Lead, Automatic On-Off, Manual On-Off Control Output, Surface Mount, 35 deg C, Plastic, Ivory, 2.73 in L x 1.75 in W x 1.81 in H
Attributes
Features
Attributes
ColorIvory
Connection TypeFlying Lead
Control OutputAutomatic On/Off, Manual On/Off
Country of OriginChina
Coverage1050 sq-ft
Dimensions2.73 in L x 1.75 in W x 1.81 in H
Lamp TypeLED
ManufacturerLegrand
MaterialPlastic
Mounting TypeSurface
Power Rating0 to 1200 W, 1/6 hp
Sensor TypePassive Infrared/Ultrasonic
SeriesDSW
Temperature Rating35 deg C
Time Delay5 to 30 min
TypeDual Technology Dual Relay
Type / StyleDual Technology Dual Relay
Viewing Angle180 deg
Voltage Rating120/277 VAC
Features
Time delay adjustments - 5 to 30 min at minimum, 3 minimum if no activity after 30 s at walk through mode, 5 s for 10 min with dip switch setting at test modeHigh or low (dip switch) PIR adjustment and minimum to maximum (trimpot), OFF ultrasonic adjustment1000 W tungsten, ballast, E-ballast, LED, 1/4 hp load limit for relay 1 at 120 VAC, 1200 W ballast, E-ballast, LED, 1/4 hp load limit for relay 1 at 277 VAC, 800 W tungsten, ballast, E-ballast, LED, 1/6 hp load limit for relay 2 at 120 VAC, 1200 W ballast, E-ballast, LED, 1/6 hp load limit for relay 2 at 277 VACComplies with 2011 NEC requirementsZero crossing for long relay lifeVandal-resistant lens combines precise coverage with durabilitySelectable walk through mode turns lights off 3 minutes after the room is initially occupied if no motion is detected after the first 30 sTest mode allows quick and easy adjustmentsSelectable audible alert for impending shutoffIn automatic mode, sensor returns automatically to auto-ON after lights are turned OFF manually, ideal for presentationsFour occupancy logic options give users the ability to customize control to meet application needsOptional light level sensing with simple setupService mode allows sensor to operate as a service switch in the unlikely event of a failureSensor coverage tested to NEMA guide publication WD 7-20002-relays for control of two separate lighting loads or circuitsE-ballast load typeOptional neutralTurns lights on and off based on occupancyReplaces existing wall switches and fits behind a standard decorator wallplate
