Lithonia Lighting CPHB ALO16 MVOLT SWW9 80CRI DWH

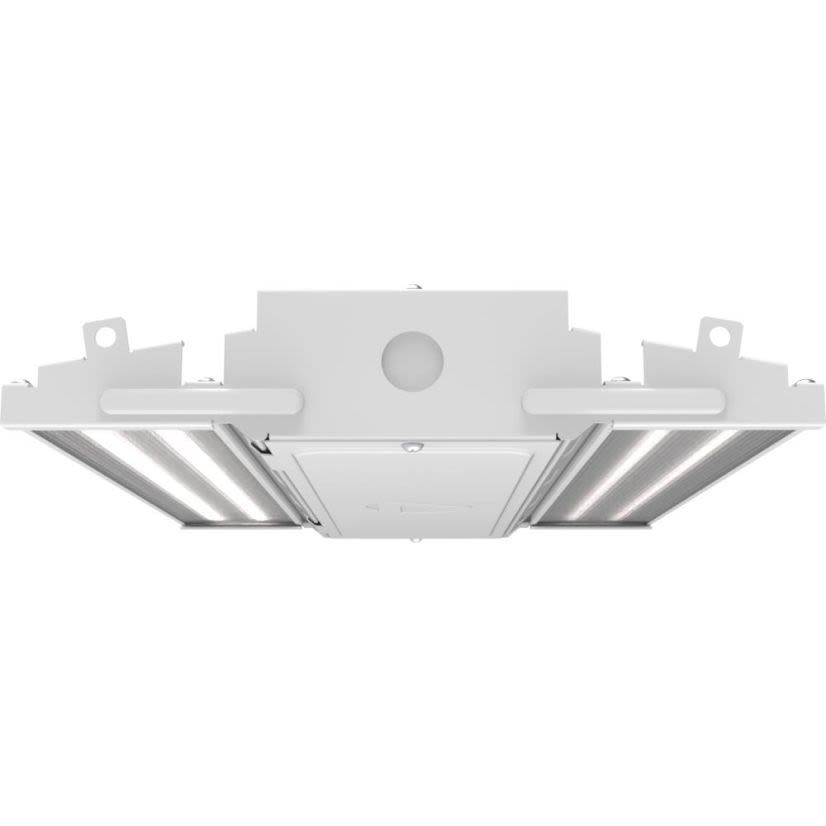

Lithonia Lighting CPHB ALO16 MVOLT SWW9 80CRI DWH CPRB Linear High Bay Light, 222 W Fixture, 120 to 277 V, White Housing
🚚 Ships Quickly from Acuity
Lithonia Lighting CPHB ALO16 MVOLT SWW9 80CRI DWH
Lithonia Lighting CPHB ALO16 MVOLT SWW9 80CRI DWH CPRB Linear High Bay Light, 222 W Fixture, 120 to 277 V, White HousingIn Stock: 461more info
|
BrandLithonia Lighting
MFG #CPHB ALO16 MVOLT SWW9 80CRI DWH
Werner Part #4460103
UPC196183428578
In Stock: 461more info
|
BrandLithonia Lighting
MFG #CPHB ALO16 MVOLT SWW9 80CRI DWH
Werner Part #4460103
UPC196183428578
Product Description
Lithonia Lighting, CPHB ALO16 MVOLT SWW9 80CRI DWH, High Bay Light, Linear, Series: CPRB, 120 to 277 V, 222 W Fixture, 100000 hr Average Life, 4000/5000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Acrylic Semi-Diffuser Lens, 30000 Lumens, Aluminum Housing Material, White Housing Finish, 11.52 in H x 2.42 in W x 22.84 in L Dimensions
Attributes
Documents
Applications
Features
Included
Specifications
Warranty
Attributes
Average Life100000 hr
Ballast Type0 to 10 V Dimmable
ColorWhite
Color Rendering Index (CRI)80
Color Temperature4000/5000 K
Country of OriginMY
Dimensions11.52 in H x 2.42 in W x 22.84 in L
DimmableYes - 0-10V
Fixture Wattage222 W
Housing FinishWhite
Housing MaterialAluminum
Lamp TypeStatic LED
Lens TypeAcrylic Semi-Diffuser
Lumen30000 Lumens
ManufacturerAcuity Brands
Operating Temperature-40 to 131 deg F
Package TypeEACH
SeriesCPRB
ShapeLinear
TypeLinear
Voltage Rating120 to 277 V
Documents
Applications
Common Areas, Education, Government, Manufacturing, Offices & Banks, Retail, Retrofit, Warehouses
Features
- It's the most compact high bay on the market, making it easier and quicker to install
- Built with quality to last and performance to get the job done
- TECHNOLOGY - Adjustable Lumen Output (ALO) and Switchable White (SWW) features allow for this panel to offer 12 configurations in 2 SKUs
- ENERGY SAVINGS - Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
- VOLTAGE - Standard MVOLT for 120-277 V
- HOURS OF LIFE - 70 Percent lumen maintenance at greater than 100,000 hr
- BATTERY - Emergency battery pack available, sold separately
- DIMMING - Thermally protected driver standard with 0-10V dimming
Included
Mounting Hardware (V-hook & 36" hanger chain)
Specifications
- CSA Certified
Warranty
5 Years
