Lithonia Lighting CPHB 15LM MVOLT 40K

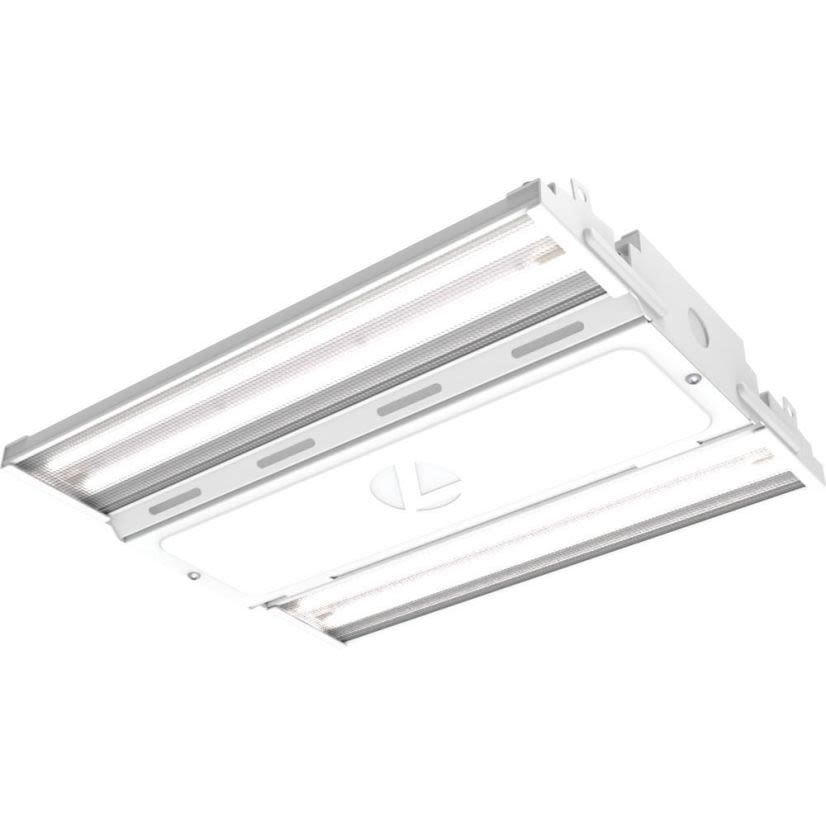

Lithonia Lighting COMPACT PRO CPHB 15LM MVOLT 40K Hardwired Rectangular High Bay Fixture, 104 W Fixture, 120 to 277 V, White Housing
🚚 Ships Quickly from Acuity
Lithonia Lighting CPHB 15LM MVOLT 40K
Lithonia Lighting COMPACT PRO CPHB 15LM MVOLT 40K Hardwired Rectangular High Bay Fixture, 104 W Fixture, 120 to 277 V, White HousingNon-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #CPHB 15LM MVOLT 40K
Werner Part #4367484
UPC194994429562
Non-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #CPHB 15LM MVOLT 40K
Werner Part #4367484
UPC194994429562
Product Description
Lithonia Lighting COMPACT PRO High Bay Fixture, Hardwired Rectangular, Series: CPHB Series, 120 to 277 V, 104 W Fixture, >135 Lumens/W, 100000 hr Average Life, 4000 K Color, Acrylic Glare Control Lens, 15000 Lumens, Pendant/Surface/Suspended Mount, White Housing, 14.44 in L x 11.52 in W x 2.3 in H
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Average Life100000 hr
Color Temperature4000 K
Country of OriginMX
Dimensions14.44 in L x 11.52 in W x 2.3 in H
Fixture Wattage104 W
Housing FinishWhite
Lamp TypeStatic LED
Lens TypeAcrylic Glare Control
Lumen15000 Lumens
ManufacturerAcuity Brands
Mounting TypePendant/Surface/Suspended
SeriesCPHB Series
TypeHardwired Rectangular
Voltage Rating120 to 277 V
Documents
Applications
Industrial, Retrofit and Warehouses
Features
- The Compact Pro High Bay by Lithonia Lighting delivers an industrial-grade lighting solution in an exceptionally compact fixture that provides for cheaper shipping, condensed storage, and quicker installation
- Built with quality to last and performance to get the job done at an affordable price for an base-level product
- TECHNOLOGY - Glare reduction optics featuring WhiteOptics Technology allowing for maximum light output while reducing glare
- ENERGY SAVINGS - LEDs provided 80 color rendering index (CRI), nominal 12,000 lumens at 4000K with a cool white color temperature
- DIMMING - Thermally protected driver standard with 0-10V dimming
- VOLTAGE - Multi-volt driver, 120-277V standard
- HOURS OF LIFE - 70 Percent lumen maintenance at greater than 100,000 hr
- INSTALLATION - Fixture is suitable for mounting by chain, cable, surface-mount bracket, pendant monopoint, or hook monopoint
- BATTERY - LED emergency driver sold separately
Specifications
- cCSAus Certified
- Damp Location Listed
- DLC QPL Listed
Warranty
5 years Limited
