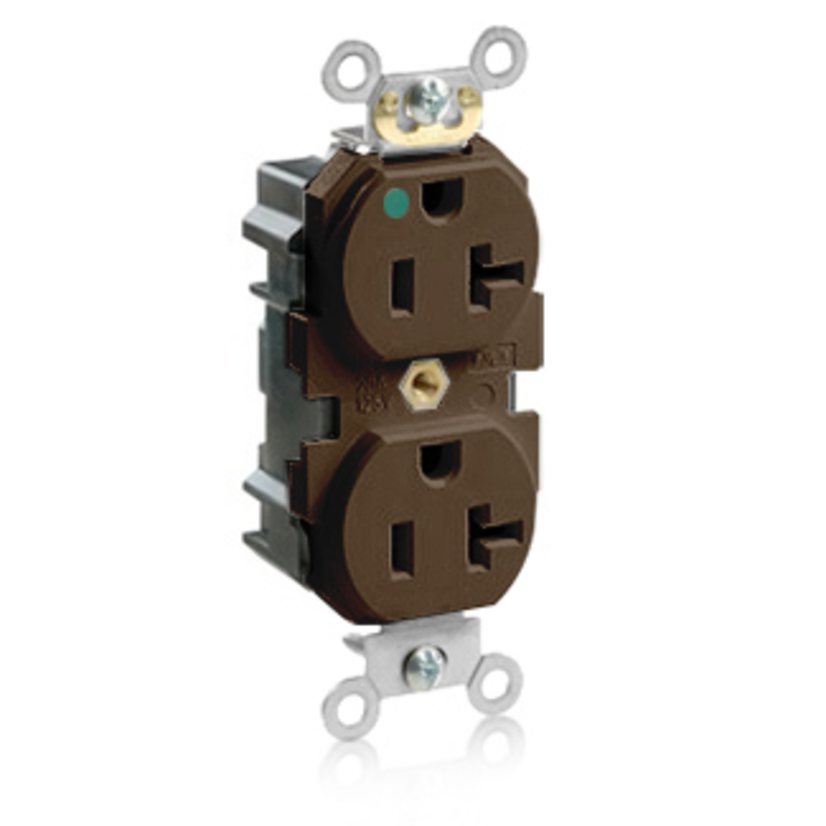

Leviton M8300-H
Leviton Lev-Lok M8300-H 1-Phase Duplex Extra Heavy Duty Self-Grounding Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Brown
Leviton M8300-H
Leviton Lev-Lok M8300-H 1-Phase Duplex Extra Heavy Duty Self-Grounding Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, BrownIn Stock: 10more info
|
In Stock: 10more info
|
Product Description
Leviton Lev-Lok Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding, 125 V AC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Modular Terminal, Thermoplastic, Brown, 46 in H x 1.53 in W x 1.22 in D
Attributes
Documents
Features
Attributes
ColorBrown
Country of OriginMX
ManufacturerLeviton
MaterialThermoplastic
Suitable For Use WithBMP71
Type1-Phase Duplex Extra Heavy Duty Self-Grounding
Documents
Features
- Constructed with impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten the receptacles face to the body
- Large triple wipe, brass T line contacts for superior contact and conductivity
- 12 AWG THHN wire leads, 6 in length on MSTWL series wiring modules
- Grounding clip permanently secured to strap for easy, simple and secure installation
- Receptacle face includes threaded brass bushing for reliable, secure wallplate attachment
- Wiring module locks and latches to the receptacle body providing double the connection security
- Receptacle to be installed only with Leviton MSTWL series wiring modules
- MSTWL wiring module shipped separately with protective cover and factory installed circuit ID label
