Leviton MS303-DSW
Leviton Powerswitch MS303-DSW 3-Phase Manual Motor Controller Non-Grounding Motor Switch, 600 V AC, 30 A, 20 hp Power Rating
Leviton MS303-DSW
Leviton Powerswitch MS303-DSW 3-Phase Manual Motor Controller Non-Grounding Motor Switch, 600 V AC, 30 A, 20 hp Power RatingIn Stock: 1more info
|
In Stock: 1more info
|
Product Description
Leviton Powerswitch Motor Switch, 3-Phase Manual Motor Controller Non-Grounding, 600 V AC, 30 A, 20 hp Power, 3 Poles, Toggle Actuator, Yoke Mounting, Screw/Back/Side Wiring Terminal, 6000 Cycles Operating Cycles, Thermoplastic Polyester, White, Environmental Conditions: -40 to 60 deg C, 3.8 in H x 2 in W x 2.5 in D
Attributes

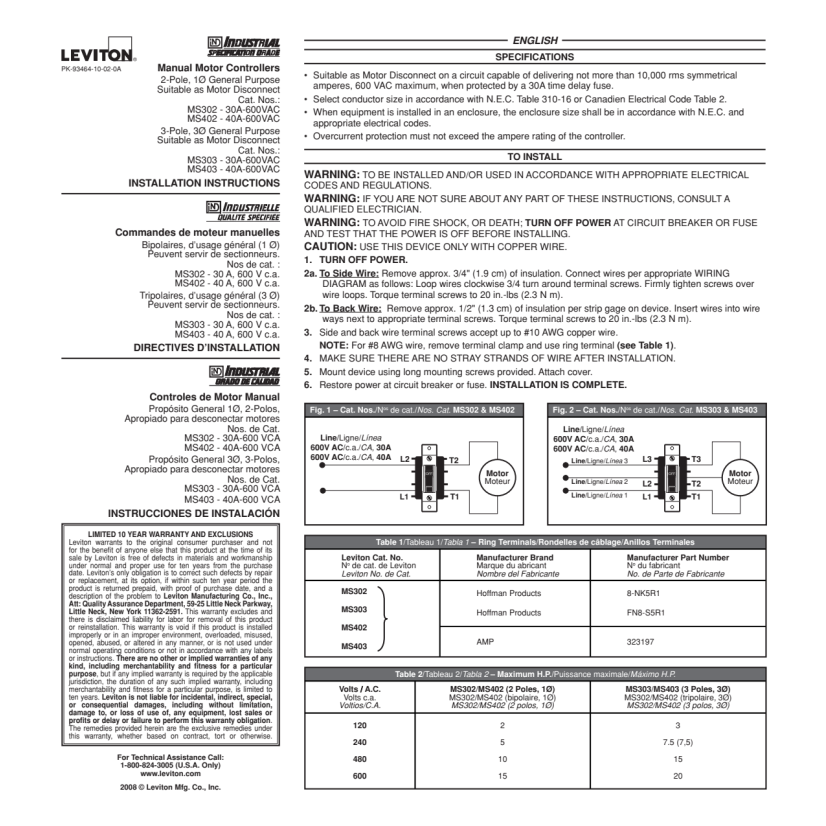

Documents
Applications
Features
Warranty
Specifications
Attributes
Actuator TypeToggle
ColorWhite
Country of OriginMX
Dimensions3.8 in H x 2 in W x 2.5 in D
Horsepower3HP-120V, 7.5HP-240V, 15HP-480V, 20HP-600V
ManufacturerLeviton
MaterialThermoplastic Polyester
Mounting TypeYoke
Number of Poles3
Temperature Rating-40°C to 60°C
Terminal TypeScrew/Back/Side Wiring
Type3-Phase Manual Motor Controller Non-Grounding
Voltage Rating600 V AC
Documents
Applications
Industrial Applications
Features
- All molded parts are thermoplastic to resist impact, chemicals, temperature, tracking and arcing
- Cam driven mechanism enhances fast-make/slow-break
- Silver alloy contacts for maximum conductivity and service life
- External clamps accept back and side wiring
- Insulating barrier between terminals provide isolation between phases
- Nickel plated brass mounting yoke for superior strength and corrosion resistance
- Oversized toggle provides positive actuation, even with gloved hand
Warranty
10 years Limited
Specifications
Standards and Certifications
- ANSI : C-73
- NEMA : WD-1 & WD-6
- NOM : NOM-ANCE
- UL 60947-4-1 : supersedes UL 508
- Warranty : 10-Year Limited
- cUL per CSA C22.2 No. 111 : File #E63969
