Leviton LP415-MB

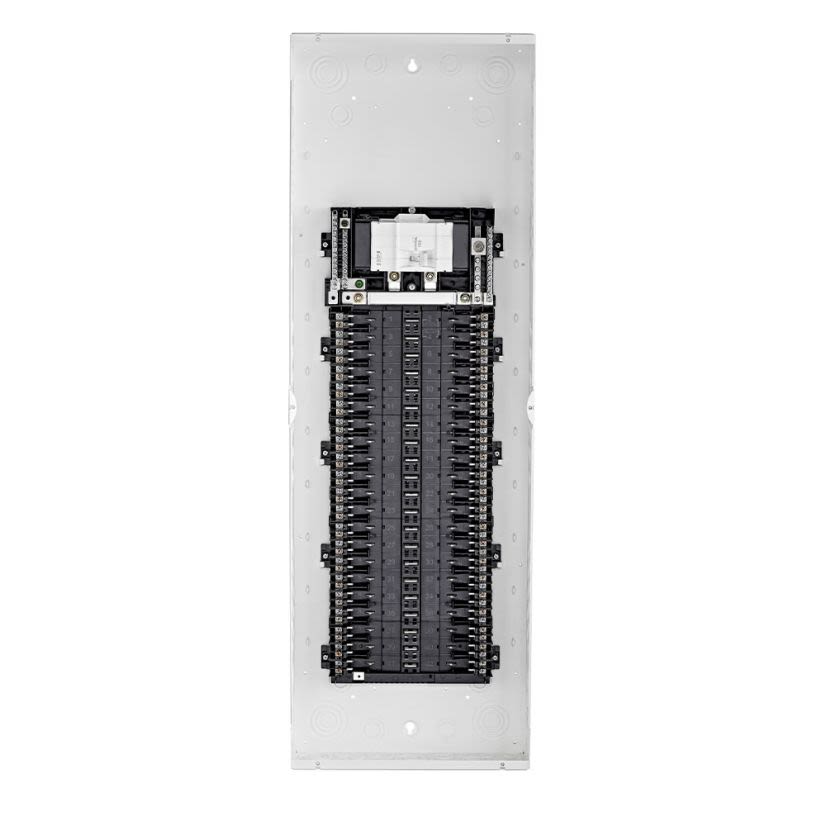

Leviton LP415-MB Main Breaker Load Center, 120/240 VAC, 150 A, 22 kA Interrupt
Leviton LP415-MB
Leviton LP415-MB Main Breaker Load Center, 120/240 VAC, 150 A, 22 kA InterruptOut of Stockmore info
|
BrandLeviton
MFG #LP415-MB
Werner Part #4411560
UPC078477906200
Out of Stockmore info
|
BrandLeviton
MFG #LP415-MB
Werner Part #4411560
UPC078477906200
Product Description
Leviton Main Breaker Load Center, 120/240 VAC, 150 A, 22 kA Interrupt, 42 Circuits, Plug-On Breaker Mounting, 3-Wire Wiring Configuration, 225 A Bus, 42 Spaces, 4 to 2/0 AWG Ground/3 AWG to 300 kcmil Supply Wire, Flush Mounting, NEMA 1 Enclosure, Galvanized Steel Housing Material, 43 in H x 14-1/4 in W x 4 in D
Attributes
Documents
Features
Warranty
Applications
Specifications
Attributes
ColorWhite
Country of OriginMX
Dimensions43 in H x 14-1/4 in W x 4 in D
Enclosure TypeNEMA 1
Housing MaterialGalvanized Steel
Interrupt Rating22 kA
ManufacturerLeviton
NEMA RatingNEMA 1
Number of Circuits42
Number of Spaces42
Temperature Rating-40C to 85C
TypeLoad Center
Wiring Configuration3-Wire
Features
- At final installation, simply plug-on the circuit breaker
- No pigtails on circuit breakers
- Copper bus is standard
- Hydraulic magnetic trip technology ensures precise tripping even in extreme temperature ranges
- Leviton GFCI, AFCI and dual function circuit breakers feature our patented reset lockout and will not reset if ground or arc fault protection is compromised
- Leviton circuit breakers with GFCI technology stand alone as the only circuit breakers on the market that meet the newest UL requirements for ground fault protection
- Intuitive LED's help communicate trip condition and type of fault (AF/GF) and remain illuminated even when the circuit breaker is in the tripped state
- Enclosure and interior only
- Terminate all hot and neutral wires at custom lugs in the panel, not at the circuit breaker
- The entire panel can be wired at rough-in without circuit breakers installed
- Notches stamped into the enclosure for cable ties promote secure and neat wiring
Warranty
10 years Limited
Applications
Indoor Applications
Specifications
UL 869A
