nVent ILSCO CLND-4-14-58

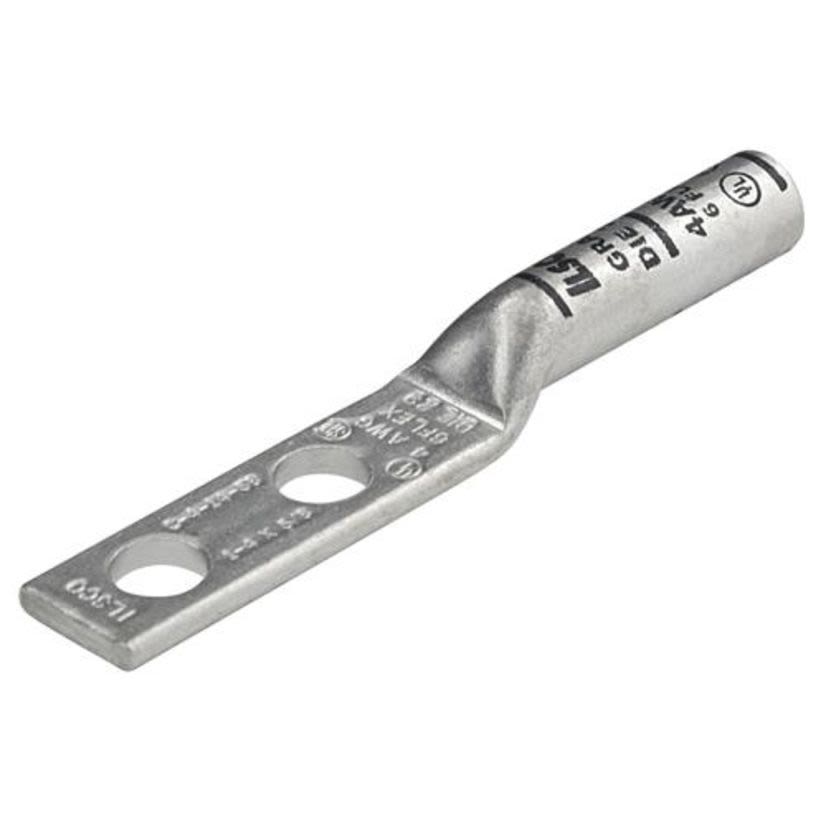

ILSCO SureCrimp CLND-4-14-58 CLND 2-Hole Lug Compression Connector, 4 AWG Copper Conductor, Die Code: I-29, 1/4 in Stud
nVent ILSCO CLND-4-14-58
ILSCO SureCrimp CLND-4-14-58 CLND 2-Hole Lug Compression Connector, 4 AWG Copper Conductor, Die Code: I-29, 1/4 in StudOut of Stockmore info
|
BrandnVent ILSCO
MFG #CLND-4-14-58
Werner Part #3825250
UPC783669630787
Out of Stockmore info
|
BrandnVent ILSCO
MFG #CLND-4-14-58
Werner Part #3825250
UPC783669630787
Product Description
ILSCO SureCrimp Lug Compression Connector, 2-Hole, Series: CLND, Copper Conductor, 4 AWG Conductor, Die Code: I-29, 600 V AC, 1/4 in Stud, 1.437 in L x 0.486 in W x 0.093 in THK Tongue, 2.796 in Overall Length, Chamfered/Long Barrel, 0.25 in ID x 0.343 in OD x 1.125 in L Barrel, 5/8 in Mounting Hole Spacing, 1.1870 in L Wire Strip, 90 deg C, 0.281 in Mounting Hole, Gray, 0.486 in W
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.25 in ID x 0.343 in OD x 1.125 in L
Barrel TypeChamfered/Long
ColorGray
Conductor size4 AWG
Conductor TypeCopper
Country of OriginMX
Die CodeI-29
Dimensions0.486 in W
ManufacturerECM Industries
Overall Length2.796 in
Package TypeEACH
SeriesCLND
Stud Size1/4 in
Temperature Rating90 deg C
Tongue Size1.437 in L x 0.486 in W x 0.093 in THK
Type2-Hole
Voltage Rating600 V AC
Applications
For terminating connector
Features
- Manufactured from high strength seamless copper tubing, electro-tin plated
- Color coded
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used
- 4 AWG solid alternate conductor size
- 6 to 4 AWG expanded conductor size
- Without sight hole
Specifications
5/8 in Mounting Hole Spacing, 1.1870 in L Wire Strip
