nVent ILSCO T3A2-2

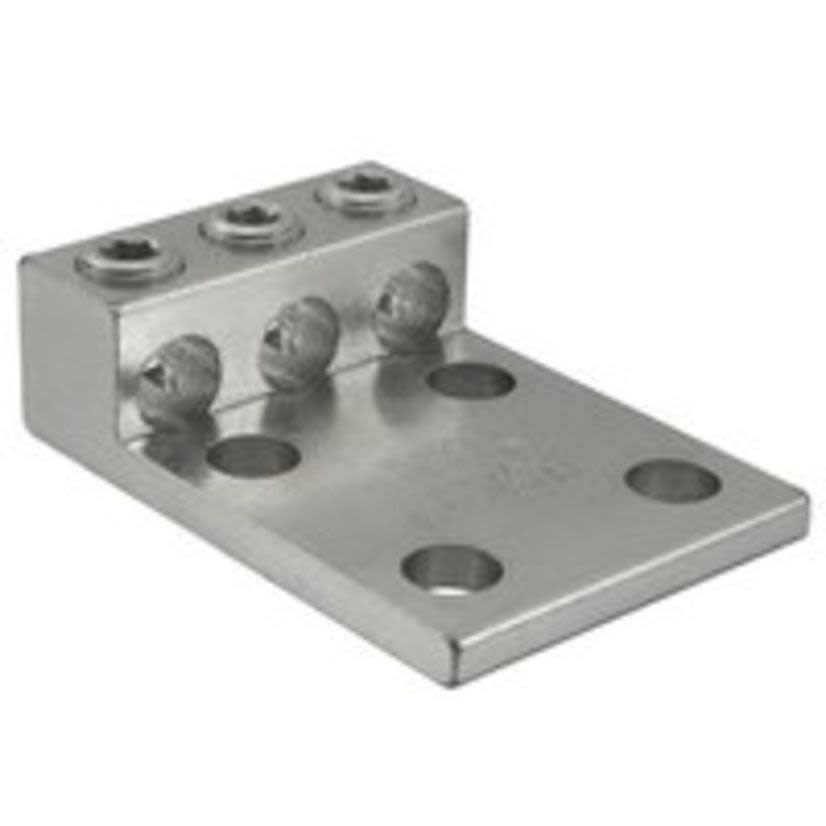

nVent ILSCO T3A2-2 3-Conductor Dual Rated Mechanical Terminal Lug, 14 to 2 AWG Aluminum/Copper Conductor, 5/16 in Stud, 3 Bolt Holes, 6061-T6 Aluminum Alloy
nVent ILSCO T3A2-2
nVent ILSCO T3A2-2 3-Conductor Dual Rated Mechanical Terminal Lug, 14 to 2 AWG Aluminum/Copper Conductor, 5/16 in Stud, 3 Bolt Holes, 6061-T6 Aluminum AlloyNon-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #T3A2-2
Werner Part #2381853
UPC783669896541
Non-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #T3A2-2
Werner Part #2381853
UPC783669896541
Product Description
nVent ILSCO ClearChoice® Mechanical Terminal Lug, 3-Conductor Dual Rated, Series: T3A, Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 5/16 in Stud, 3 Bolt Holes, 1.687 in L x 1.594 in W x 0.187 in THK Tongue, Straight Tongue, 2000 VAC, Slotted Hex, 7/8 in Mounting Hole Spacing, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 2.187 in L x 1.594 in W x 0.625 in H
Attributes
Documents
Features
Specifications
Attributes
Conductor size14 to 2 AWG
Conductor TypeAluminum/Copper
Country of OriginMexico
Dimensions2.187 in L x 1.594 in W x 0.625 in H
FinishElectro-Plated Tin
ManufacturernVent
Material6061-T6 Aluminum Alloy
Number of Bolt Holes3
SeriesT3A
Temperature Rating90 deg C
Tongue Size1.687 in L x 1.594 in W x 0.187 in THK
Tongue TypeStraight
Type3-Conductor Dual Rated
Type / Style3-Conductor Dual Rated
Voltage Rating2000 VAC
Documents
Features
Manufactured from high strength 6061-T6 aluminum alloyChamfered wire entry provides ease of installationMust be mounted with a minimum of 2-boltsMounting hole spacing from side to side, hole to hole is 7/8 inProvides low contact resistanceEnsures reliability for copper or aluminum conductorsSuitable for use with either copper or aluminum conductors2-studs
Specifications
Slotted Hex, 7/8 in Mounting Hole Spacing
