nVent ILSCO PBTD-3-3/0

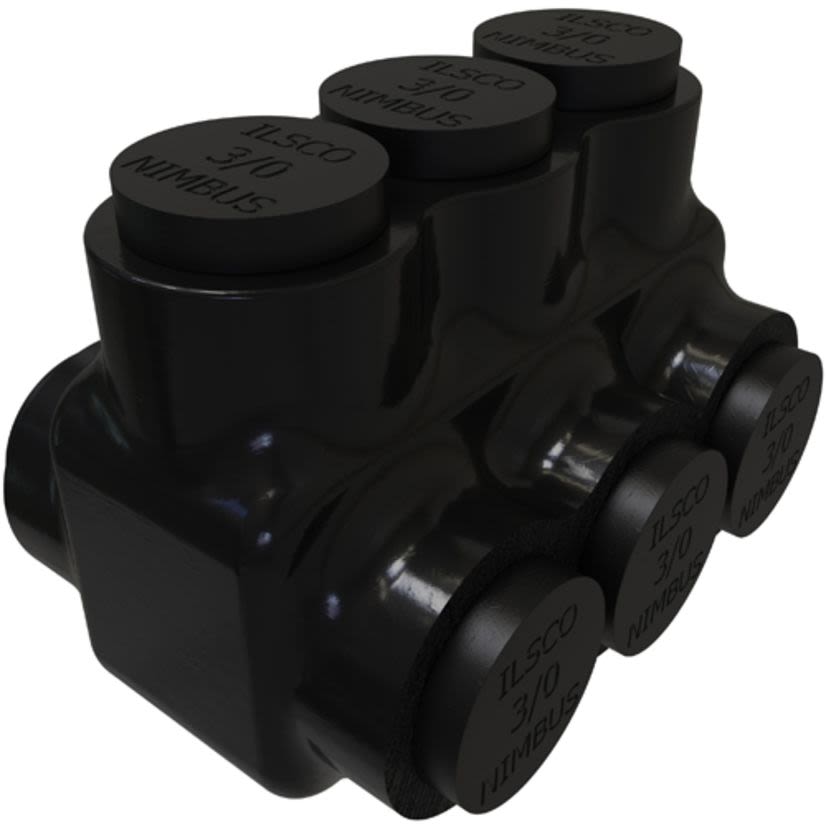

nVent ILSCO PBTD-3-3/0 Type PBTD 2-Sided Entry 3-Port Dual Rated Insulated Multi-Tap Connector, Aluminum/Copper Conductor, Aluminum
nVent ILSCO PBTD-3-3/0
nVent ILSCO PBTD-3-3/0 Type PBTD 2-Sided Entry 3-Port Dual Rated Insulated Multi-Tap Connector, Aluminum/Copper Conductor, AluminumIn Stock: 10more info
|
BrandnVent ILSCO
MFG #PBTD-3-3/0
Werner Part #2379040
UPC783669077643
In Stock: 10more info
|
BrandnVent ILSCO
MFG #PBTD-3-3/0
Werner Part #2379040
UPC783669077643
Product Description
nVent ILSCO NIMBUS® Multi-Tap Connector, Type PBTD 2-Sided Entry 3-Port Dual Rated Insulated, Aluminum/Copper Conductor, 600 VAC, 6 to 3/0 AWG Wire, 1/4 in Hex, 225 A, -45 to 90 deg C, Aluminum, 2.65 in L x 1.68 in W x 1.86 in H
Attributes
Documents
Features
Specifications
Attributes
Conductor TypeAluminum/Copper
Country of OriginMexico
Dimensions2.65 in L x 1.68 in W x 1.86 in H
ManufacturernVent
MaterialAluminum
Temperature Rating-45 to 90 deg C
TypeType PBTD 2-Sided Entry 3-Port Dual Rated Insulated
Type / StyleType PBTD 2-Sided Entry 3-Port Dual Rated Insulated
Voltage Rating600 VAC
Documents
Features
Broad wire range 14 AWG to 750 kcmilHigh dielectric strength plastisol is chemical resistantBlack cover is UV ratedRemovable port and screw plugsPre-filled with DE-OX® oxide inhibiting compoundPer NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 AEnsures reliabilityFlexibility in the fieldEntry port closurePrevents oxides from formingPatented screw designIncoming and outgoing conductors must be staggered
Specifications
6 to 3/0 AWG Wire, 1/4 in Hex, 225 A
